1. Product Introduction（产品简介）

Most wall panels are flat, but 3D PS wall panels are not. Ordinary PS wall panels print a wood or stone pattern on a smooth surface, so the pattern looks flat from every angle and you cannot feel any texture. 3D PS wall panels are physically sculpted, with relief depths of 2mm to 10mm, meaning the surface actually rises and falls—waves have curves you can feel, and geometric shapes cast real shadows that change with the light. This is the difference between looking at a picture of texture and having real texture on your wall. Lightweight, easy to install, moisture-resistant, and surprisingly affordable, for accent walls that demand attention, flat is boring and 3D is alive.

2. Product Parameters（产品参数）

Note: Custom dimensions, patterns, colors, and relief depths available per client specifications.

3. Product Features & Applications（产品特点和应用）

Product Features

• Real 3D Relief – NOT Flat Printing
  Ordinary PS panels are flat – they print a pattern on a smooth surface. 3D PS panels are physically sculpted with 2mm–10mm relief depth. Waves have curves you can feel. Geometric shapes cast real shadows that change with light. This is true texture, not just a printed picture.
• Dynamic Light & Shadow Effects
  Because the surface has real depth, light hits differently throughout the day – soft highlights in morning, dramatic shadows in evening. A flat wall is static; a 3D wall is alive.
• Lightweight & Easy Installation
  Despite their dimensional depth, 3D PS panels are very light (0.3kg–5.2kg per panel). Install directly over existing walls using adhesive – no demolition, no mortar, no mess. One person can finish a room in one day.
• Built-in Insulation & Acoustic Absorption
  The foam structure provides thermal insulation (0.03–0.05 W/m·K) and reduces echo (NRC 0.45–0.75). Ideal for home theaters, restaurants, and energy-saving interiors.
• Moisture-Resistant, Fire-Retardant & Low Maintenance
  Water absorption ≤0.3%, suitable for bathroom dry zones and kitchens (not for direct submersion). B1 fire rating (self-extinguishing). Wipe clean with a damp cloth – no repainting needed.

Application Scenarios

3D PS panels are designed for statement walls where you want people to stop and notice:

Note: For shower stalls or direct water contact, use SPC wall panels (100% waterproof). For dry accent walls where visual impact matters most, choose 3D PS panels.

4. Production Details（产品细节介绍 多方位展示）

Multi-Stage Manufacturing for Premium 3D Effect

3D PS wall panels are produced through a combination of precision molding, digital printing, and surface finishing technologies:

• 3D Molding / CNC Engraving– The PS foam substrate is formed using high-pressure molds or precision CNC engraving machines. Relief depths of 2mm to 10mm create the signature three-dimensional effect, with seamless pattern transitions between adjacent panels.
• Digital Inkjet Printing– High-definition patterns are printed onto the panel surface using digital inkjet technology and then cured to form a durable pattern layer. This allows for realistic reproduction of wood grains, marble veining, stone textures, and custom designs.
• UV Coating & Embossing– A UV-cured coating is applied over the printed pattern layer to enhance durability, color fidelity, and scratch resistance. Some processes use steel rollers or plates to create additional embossed texture that aligns precisely with the printed pattern, achieving a high degree of realism.
• Quality Control– Each panel undergoes rigorous inspection before packaging. Manufacturers employ professional quality control teams at every production stage—from raw material selection to CNC engraving, sanding, painting, and final packaging—ensuring that defective products never leave the factory.

Design Options & Customization

3D PS wall panels are available in an extensive range of patterns and finishes:

• Pattern Types: Flowing waves, geometric grids (triangles, diamonds, hexagons), cubic blocks, organic curves, wood grain textures, stone effects (brick, slate, travertine), and custom designs
• Surface Finishes: Matte, glossy, textured, primed (ready for painting), metallic accent, or wood-look lamination
• Customization: Colors, pattern depths, dimensions, and surface finishes can be tailored to client specifications

Panel Connection Systems

• Adhesive Installation: Most 3D PS panels are installed using high-quality construction adhesive applied to the back of each panel in a zigzag pattern.
• Tongue & Groove: Some models feature interlocking edges that allow panels to click together seamlessly, with coordinated moldings available for clean corner finishes.
• Peel & Stick: Lightweight DIY panels may feature self-adhesive backing for quick, no-tool installation.

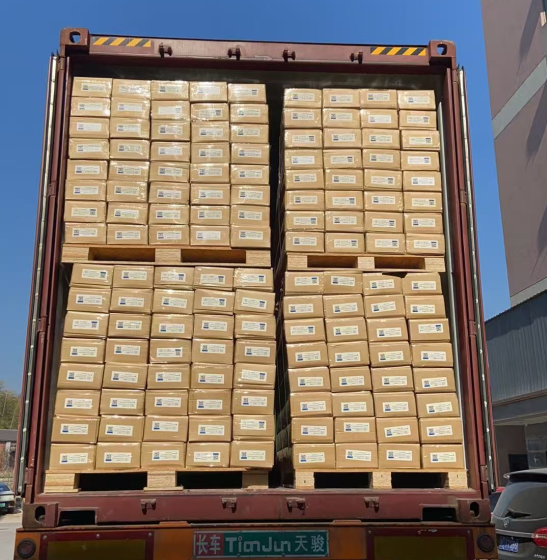

Packaging & Shipping

• Packaging: Panels are individually wrapped or packed in cardboard boxes with protective cushioning to prevent damage during transit
• Shipping: Standard 20ft/40ft container shipments available from major Chinese ports (Shanghai, Ningbo) with typical transit times of 20–40 days depending on destination

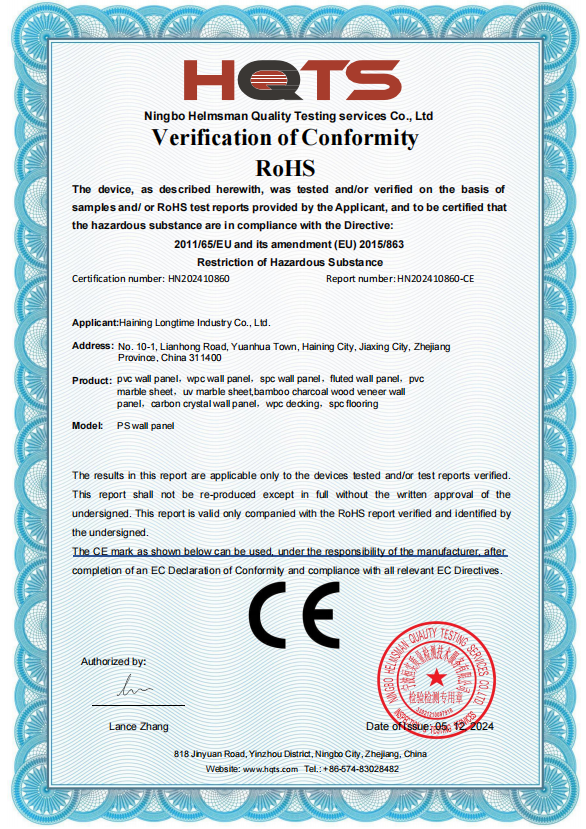

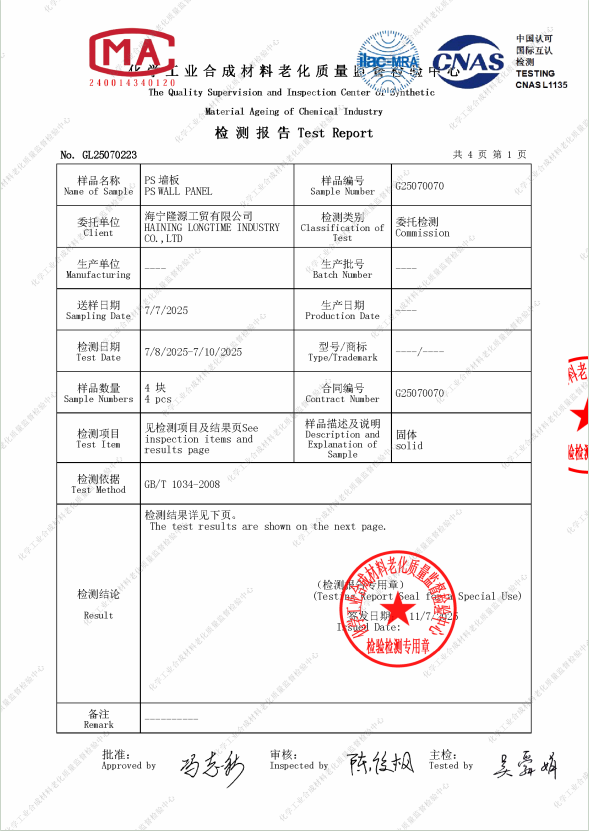

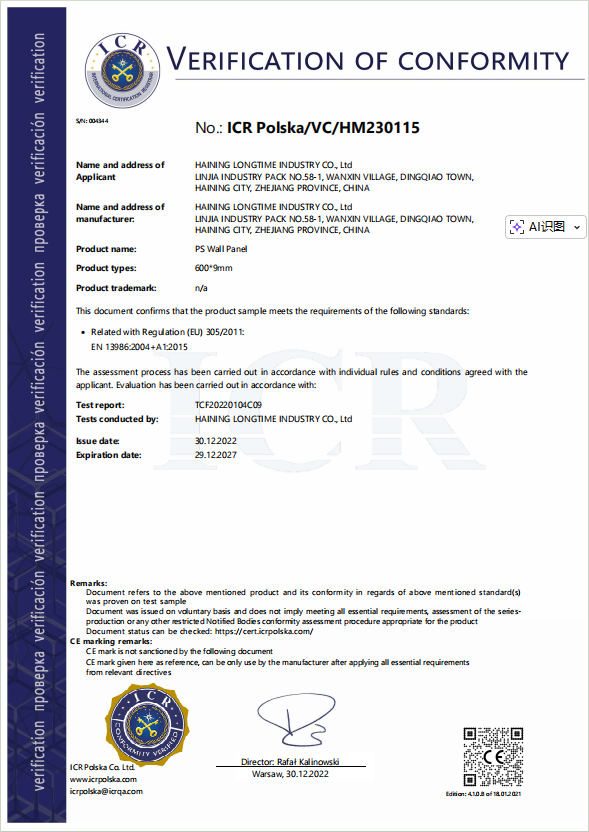

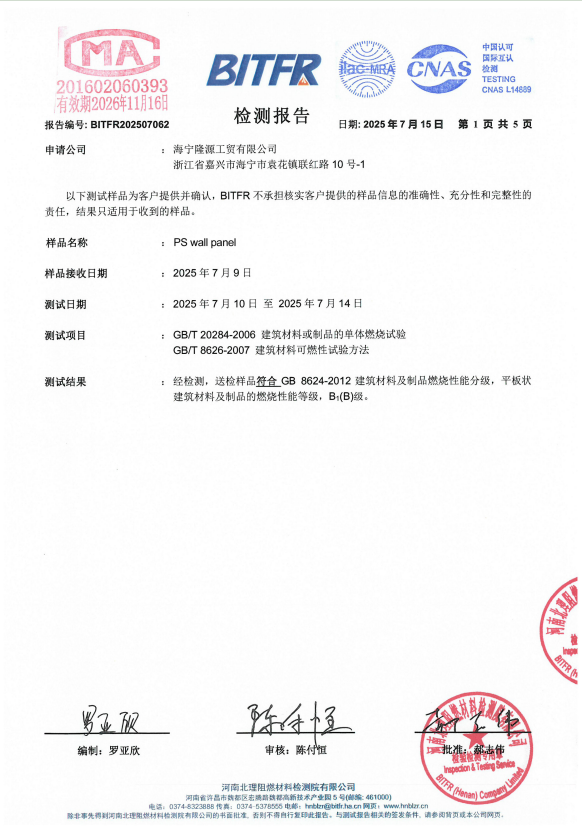

5. Product Qualification（产品认证）

6. FAQ（Frequently Asked Questions）

1. Where is your factory located?

Our company is located at No. 10-1 Lianhong Road, Yuanhua Town, Haining City, Zhejiang Province, China

2. How long does shipping take?

Samples typically ship within 5–7 business days. For bulk orders, production takes about 15–20 days after order confirmation, depending on quantity and customization requirements.

3. Are 3D PS wall panels waterproof?

They are moisture-resistant and mold-proof. The PS material absorbs very little water (≤0.3%), and most panels come with moisture-proof coatings. They perform great in high-humidity environments like bathroom dry zones, kitchens, and basements. However, they are not designed for direct water submersion or shower stalls.

4. Are they fire-rated?

Yes, with flame-retardant additives, 3D PS panels can achieve B1 fire rating (EN 13501-1 Class B-s1, d0). This means they are self-extinguishing upon flame removal and produce minimal smoke, making them safe for commercial spaces like hotels, restaurants, and offices.

5. What's the difference between 3D PS panels and flat SPC wall panels?

Good question. Here's a quick breakdown:

Choose 3D PS panels when you want dramatic visual impact, acoustic absorption, thermal insulation, and lightweight installation for accent walls. Choose SPC panels when you need 100% waterproof protection for wet areas like showers and bathrooms.
