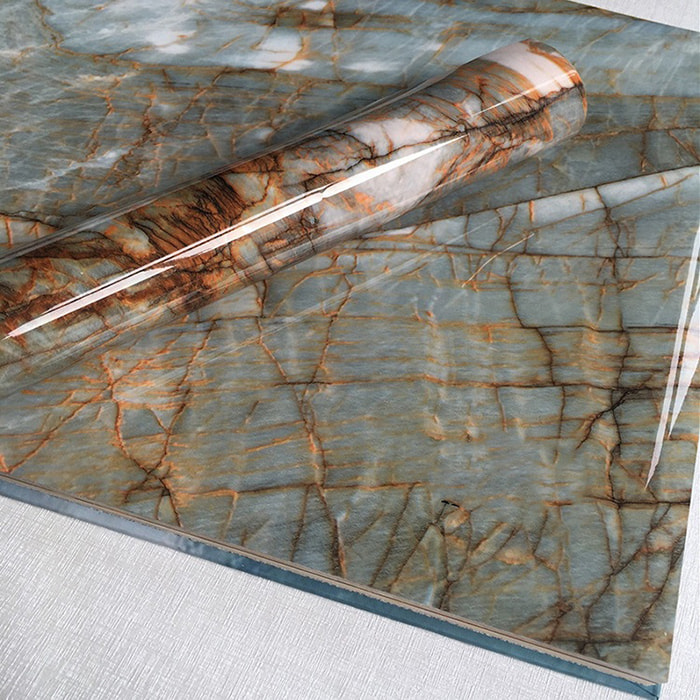

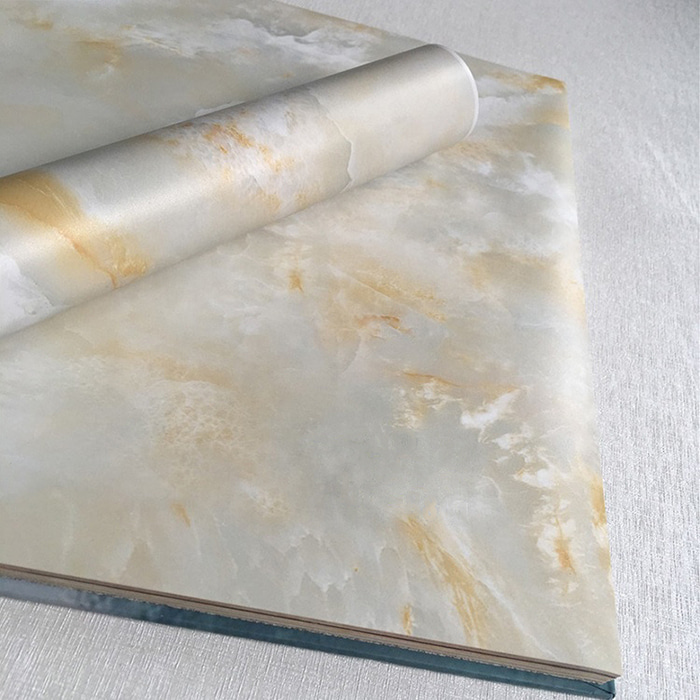

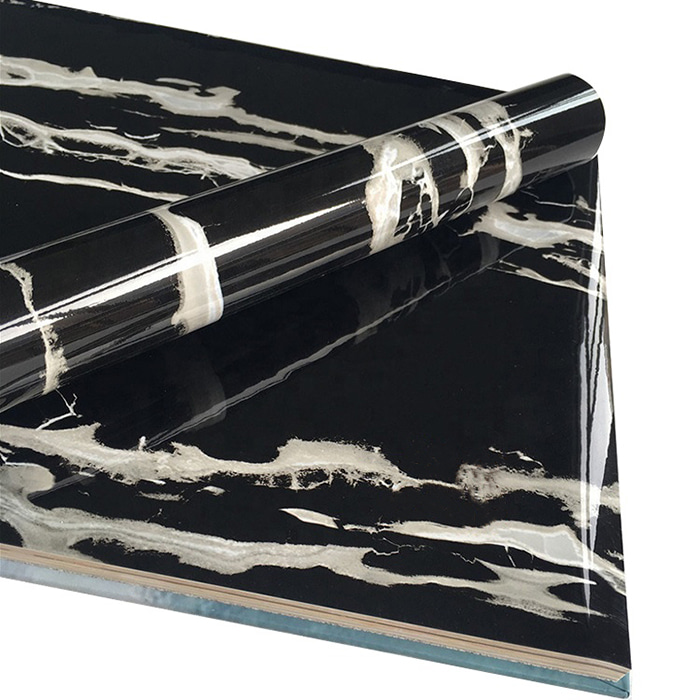

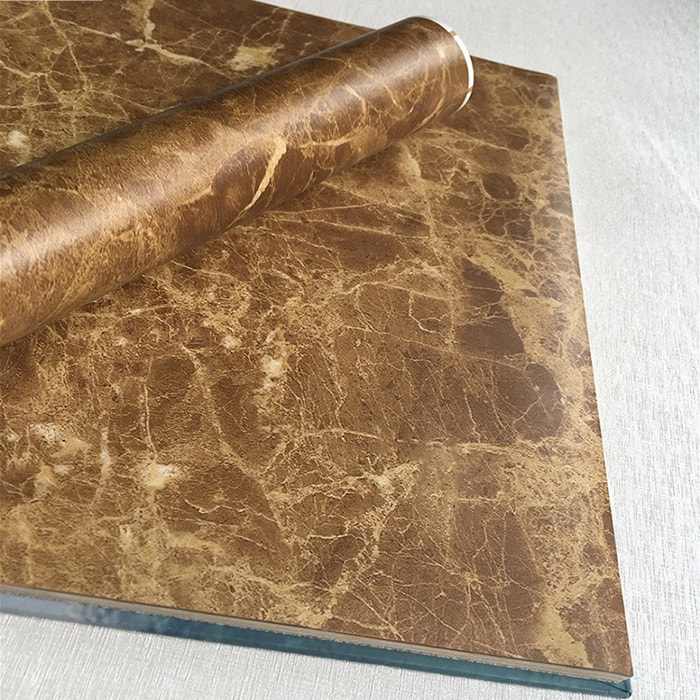

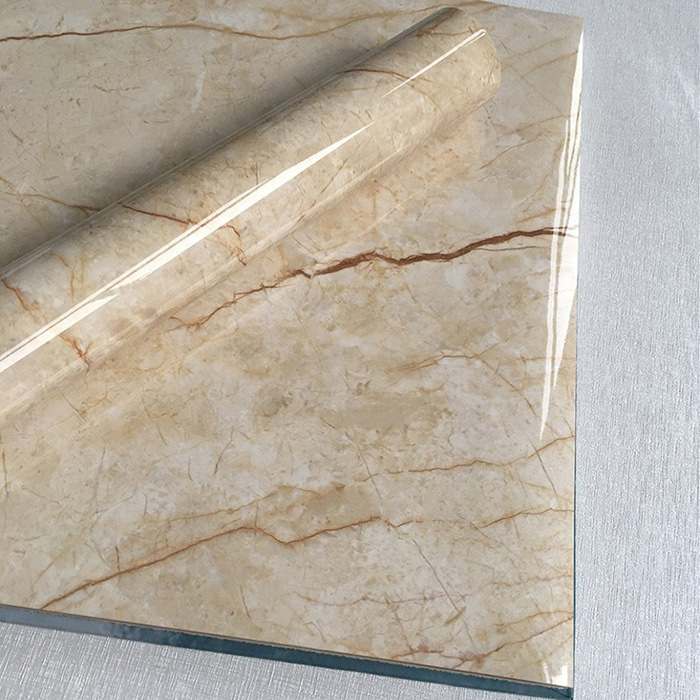

3D Digital Printing Marble Design PVC/PET Decorative Film for PVC Foam Board Anti-Scratch Marble PVC Film for PUR Laminating Use

​​Material​​ Polyvinyl chloride (PVC) base film + printing ink layer + protective coating (UV/matte/gloss)​​size​​

Standard width: 1220mm / 1530mm; length: 50m/roll (support customized width ≤1530mm, length ≤1000m)

​​Thickness​​ 0.08mm-0.5mm (conventional thickness: 0.12mm, 0.2mm, 0.3mm)​​

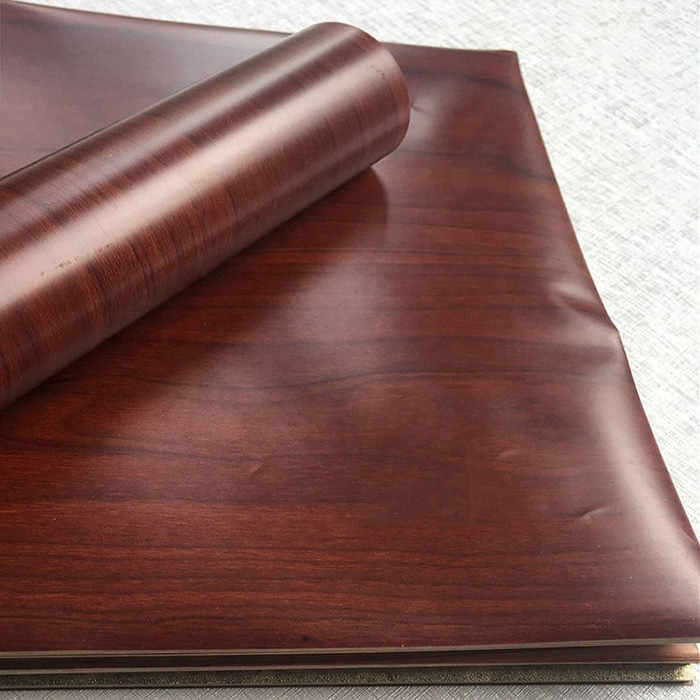

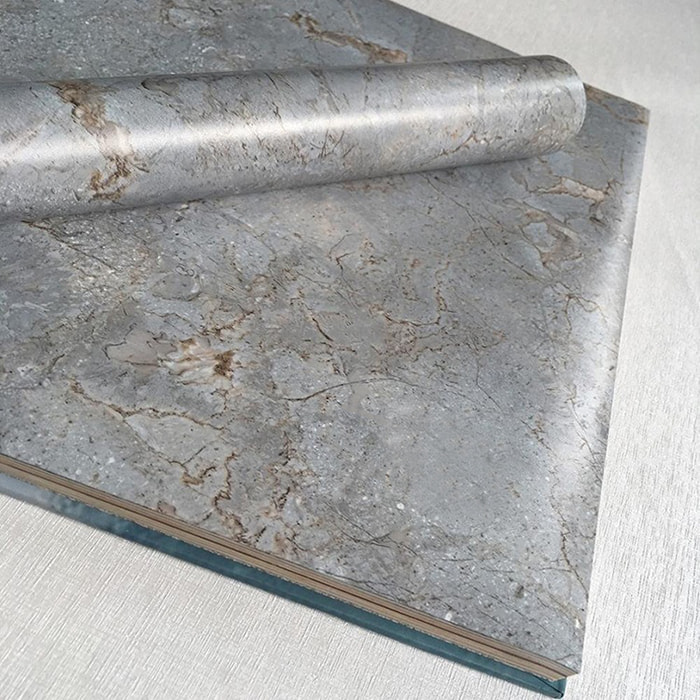

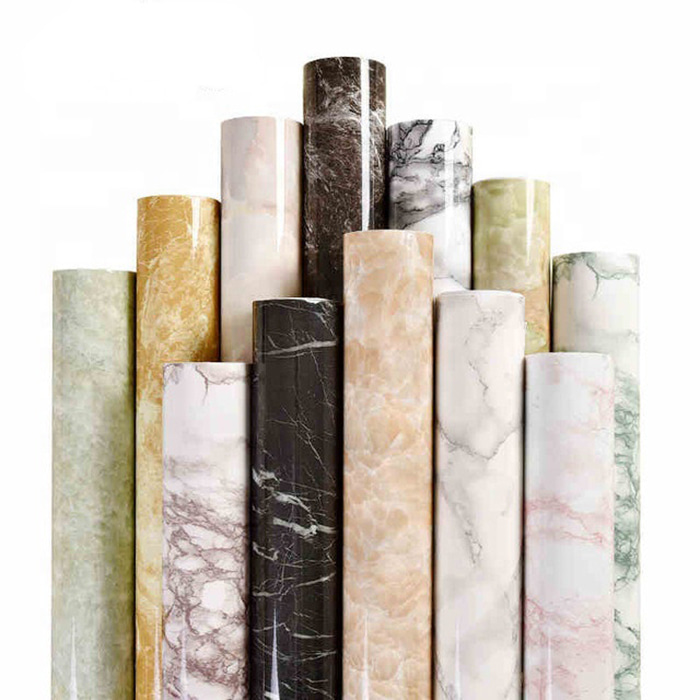

Printing resolution​​Up to 1200dpi (laser engraving accuracy up to 0.01mm)​​color​​ Transparent, porcelain white, wood grain, stone grain, metallic color, gradient effect (support Pantone color customization)

​​Wear resistance​​ ≥5000 revolutions (Taber wear test, CS-10 wheel, load 1kg)​​

Temperature resistance​​ -30℃ to 80℃ (no warping or fading during long-term use)

Tensile strength​​ ≥18MPa (longitudinal) / ≥12MPa (transverse) (GB/T 1040 standard)​​

Peel strength​​ ≥15N/cm (bonding force between PET substrate and transfer layer, ASTM D3359)

​​Environmental standards​​ Compliant with RoHS, REACH, EN71-3 (heavy metal ≤ 0.01mg/kg)

Printed PVC film is a decorative material that uses polyvinyl chloride (PVC) film as the substrate, transfers the pattern layer to the substrate surface through gravure printing, screen printing or digital printing technology, and then covers it with UV coating or protective film. Its core features include high-precision pattern restoration, wear resistance and weather resistance, environmental protection and non-toxicity. It is suitable for scenes such as advertising display, furniture veneer, and electronic product shells, replacing traditional silk screen printing and sticker processes.

Advertising and Display​​​​

Lightbox Advertising​​ : Light transmittance ≥85%, built-in LED light source to achieve three-dimensional luminous effect.​​

Signage​​ : Reflective coating (retroreflection coefficient ≥ 500cd/lx/m²), suitable for outdoor advertising.​​

Furniture Industry​​​​

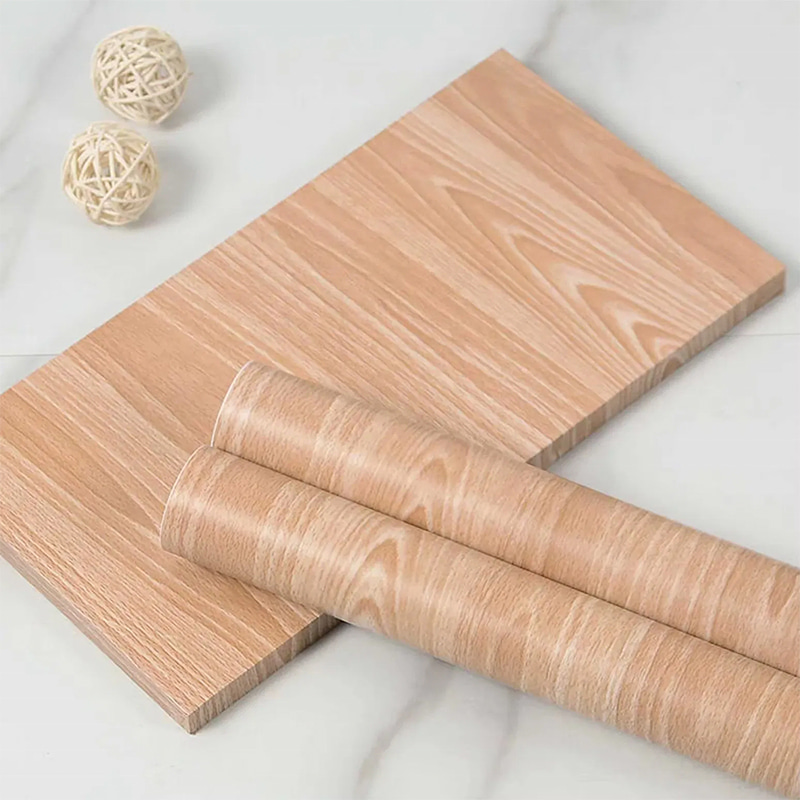

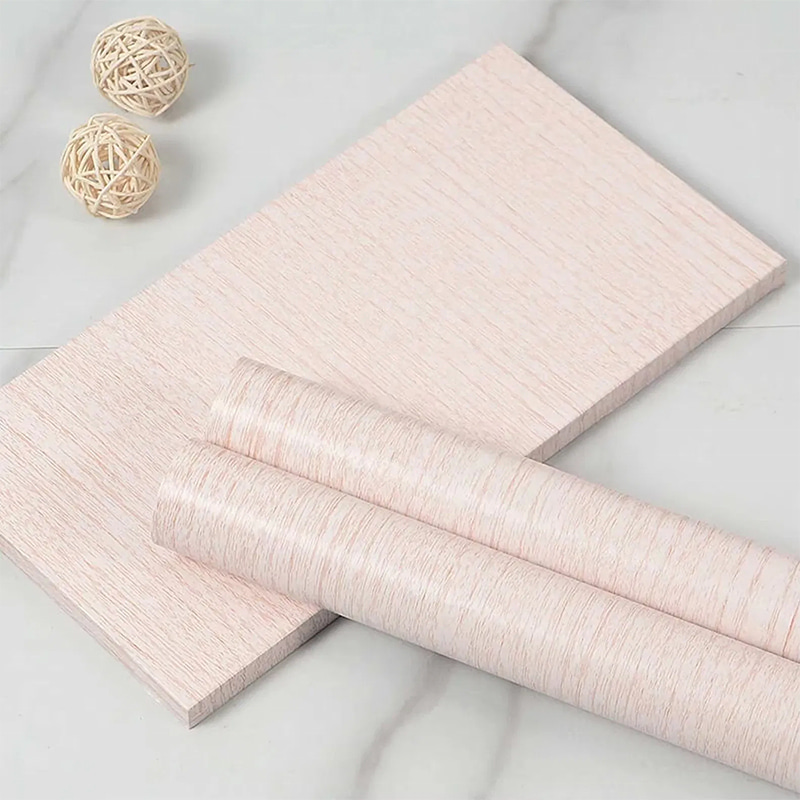

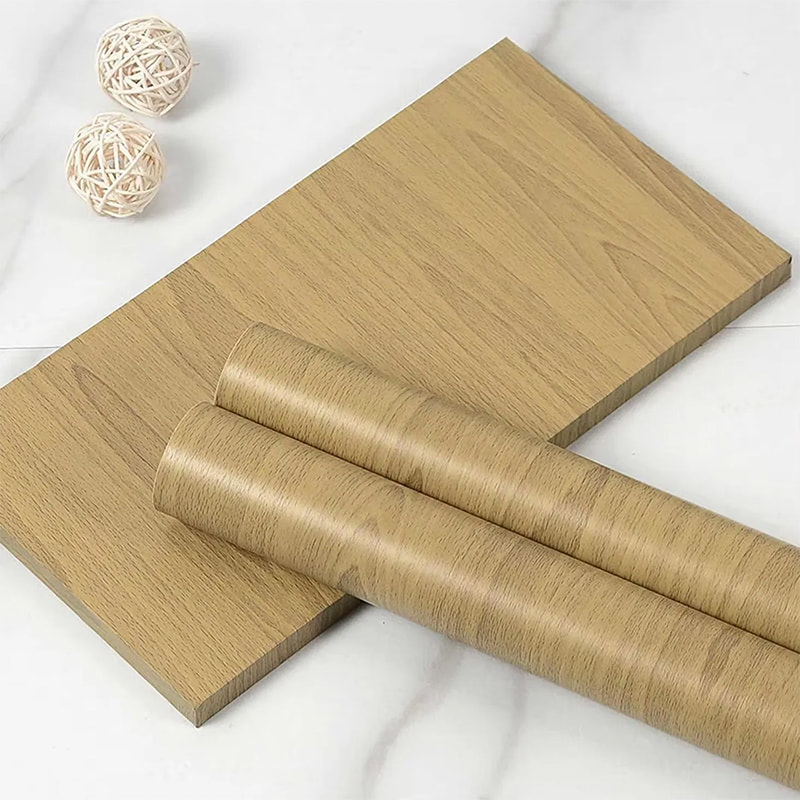

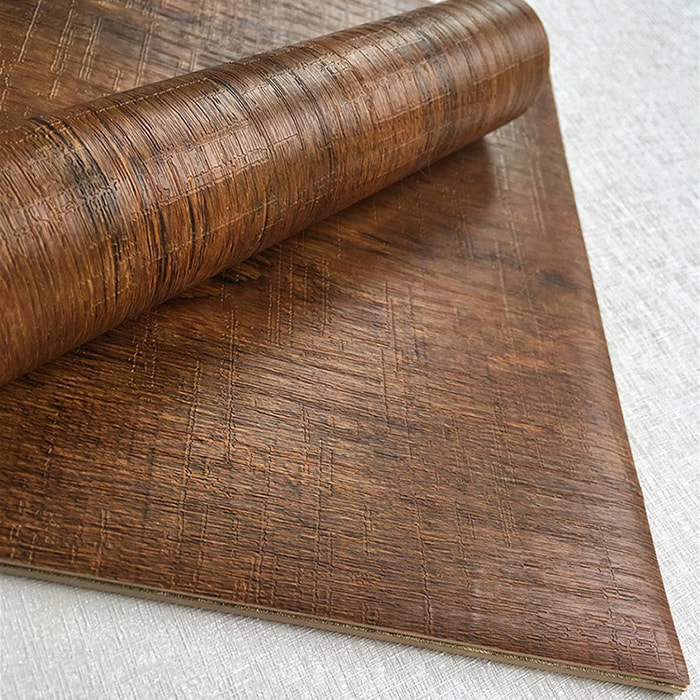

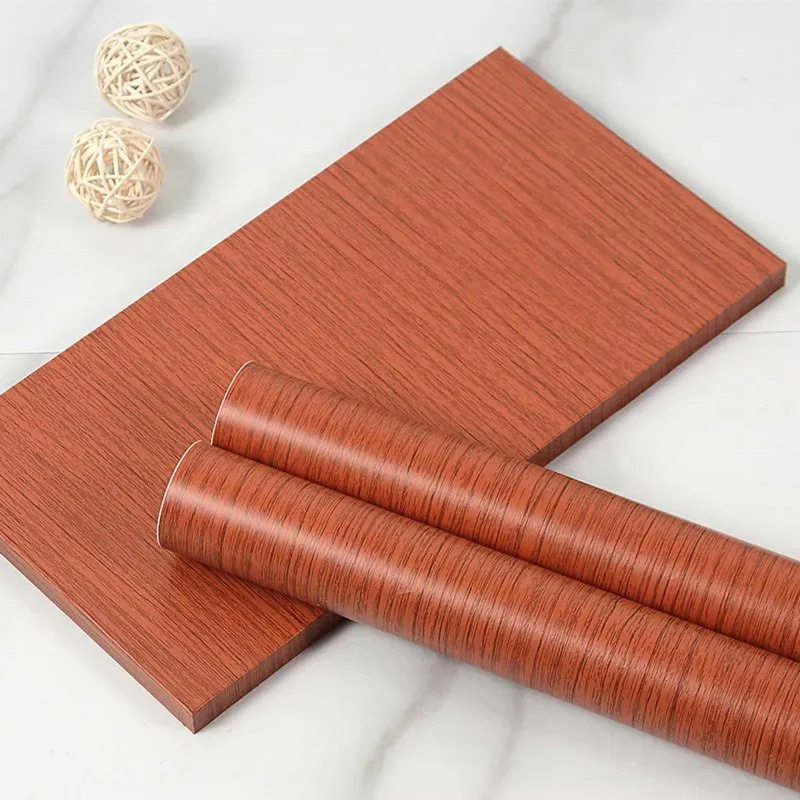

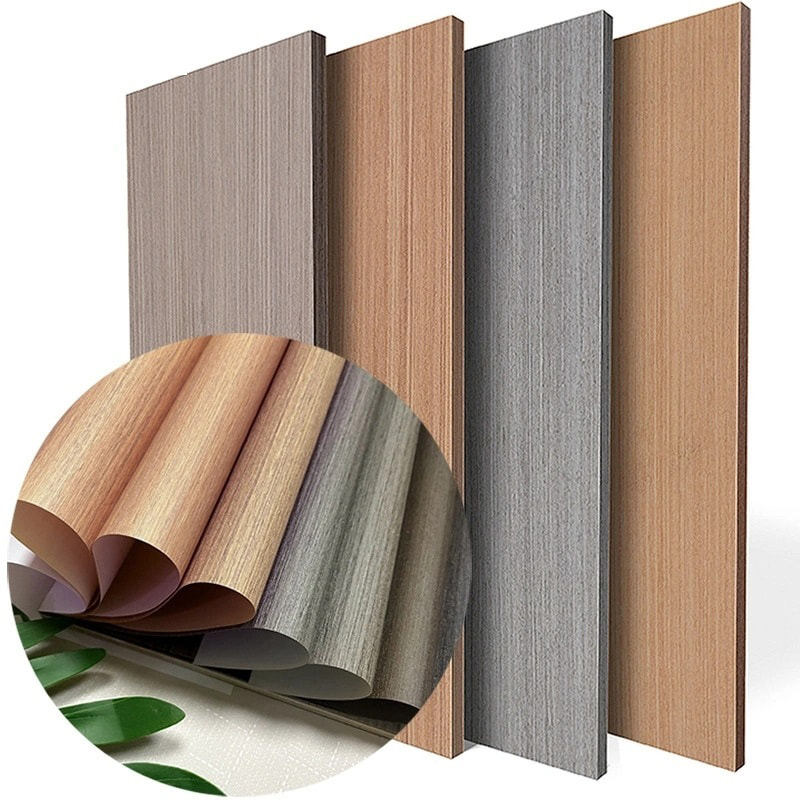

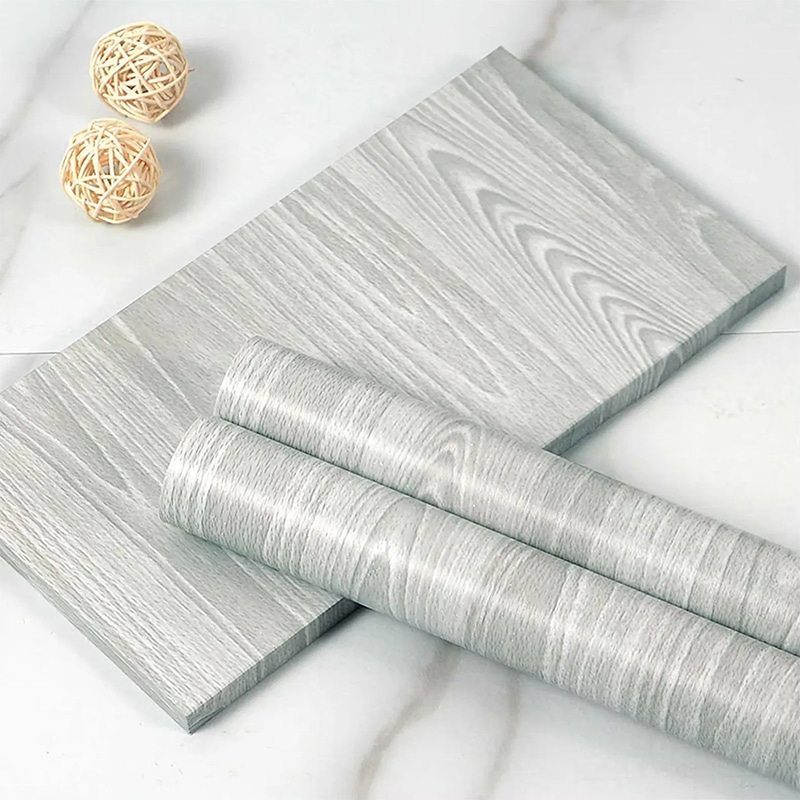

Panel furniture​​ : Imitation wood grain and stone grain veneer (such as oak and marble texture) to enhance product added value.

​​Custom Home​​ : Curved surface fitting (radius ≥ 10cm), suitable for special-shaped cabinets and door panels.​​

Electronics​​​​

Home appliance housing​​ : Metal brushing and gradient effects enhance the aesthetics of products (such as air conditioning panels and small appliance housings).​​

3C accessories​​ : Anti-scratch coating protects the screen and buttons (pencil hardness ≥ 2H).

​​Packaging field​​​​

Food Packaging​​ : Transparent printing layer + moisture-proof coating, in line with FDA food contact standards.​​

Cosmetic Box​​ : Pearlescent effect + anti-fingerprint treatment to enhance texture.​​

Architectural Decoration​​​​Indoor wall​​ : Waterproof and moisture-proof (water absorption ≤ 0.3%), directly adhered to the surface of cement and gypsum board.​​

Floor film​​: The wear-resistant layer is scratch-resistant (≥5000 revolutions), suitable for high-humidity environments such as kitchens and bathrooms.



High-precision pattern restoration​​ 1200dpi printing resolution, texture clarity reaches micron level, supports photo-level effect image transfer.​​

Super wear-resistant and weather-resistant​​

The surface wear-resistant layer has a rotation life of ≥5000 and a weather resistance of Grade 5 (no powdering after 500 hours of QUV aging test).

​​Environmental safety​​

No formaldehyde, no heavy metals, complies with EN71-3 children's toy safety standards, and is recyclable and degradable.​​

Diversified Design​​

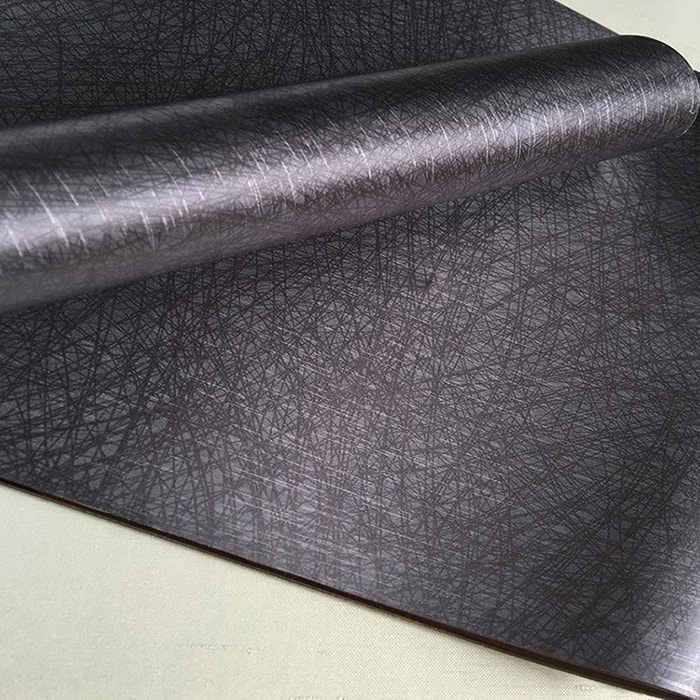

Supports more than 1,000 patterns including wood grain, stone grain, brushed metal, gradient, etc., and can customize dynamic grating effects.​​

Convenient construction​​

Comes with self-adhesive or cold-stick installation, no glue required, adaptable to curved surfaces and special-shaped substrates (minimum radius 10cm).​​

Cost-effective​​

The cost is only 1/3 of that of solid wood veneer, and the service life is over 5 years (traffic ≥ 3000 times/day).​​

Versatility​​ Antistatic treatment (surface resistance ≤ 1×10⁶ Ω), antibacterial (nano silver ion coating, antibacterial rate ≥ 99%).



Substrate treatment​​​​

PVC film preparation​​ Polyvinyl chloride resin (S-70) + plasticizer (DOP) + stabilizer (Ca-Zn), formed by calendering process, thickness error ≤±0.02mm.​​

Printing Technology

​​​​Gravure printing​​ ：Ink adhesion reaches 4B level (ASTM D3359), color difference ΔE≤0.5.

Digital Printing​​ : Inkjet resolution 1200dpi, supports full-color gradient and photo-level patterns.​​

Surface treatment​​​​

UV Curing​​ ：UV coating film thickness ≥15μm, curing energy ≥800mJ/cm², hardness ≥3H.​​

Anti-scratch treatment​​ : Diamond-like carbon (DLC) coating, pencil hardness ≥ 4H.​​

Post-processing technology​​​​

Surface hydrophobic treatment​​ : Nano-silica coating, contact angle ≥110°, waterproof and anti-fouling.​​

Antistatic treatment​​：Surface sprayed with conductive carbon black coating, surface resistance ≤1×10⁶ Ω.​​

Quality Inspection​​​​

Wear test​​ : Taber has no exposed bottom after 5000 turns (CS-10 wheel, load 1kg).

​​Environmental testing​​ : RoHS heavy metal detection (lead, cadmium, mercury, etc. ≤100ppm).​​

Special Process

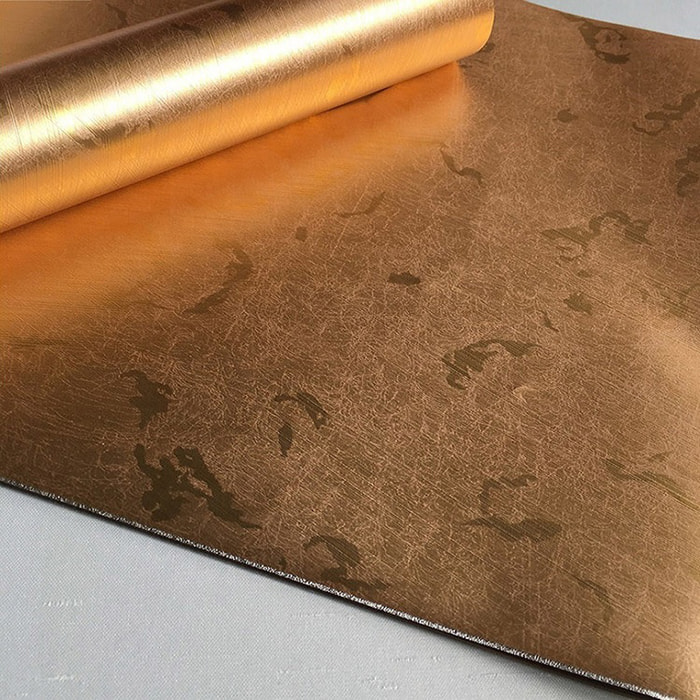

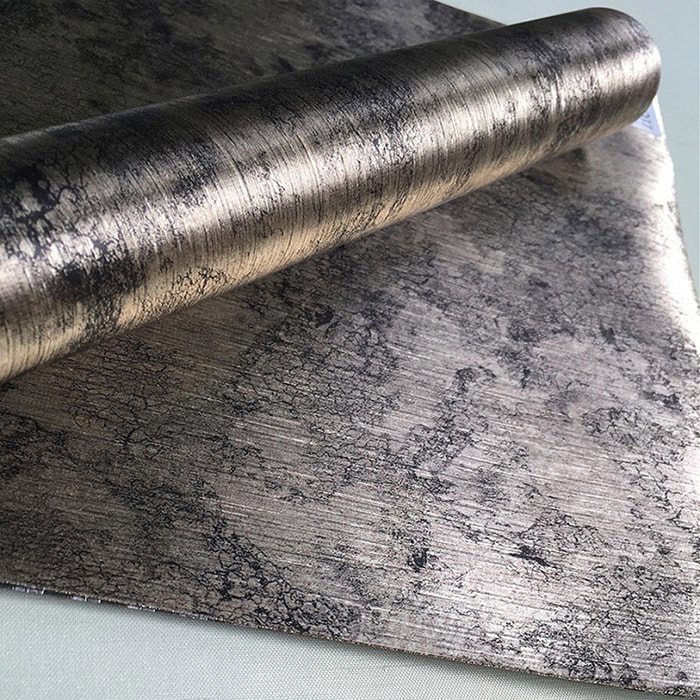

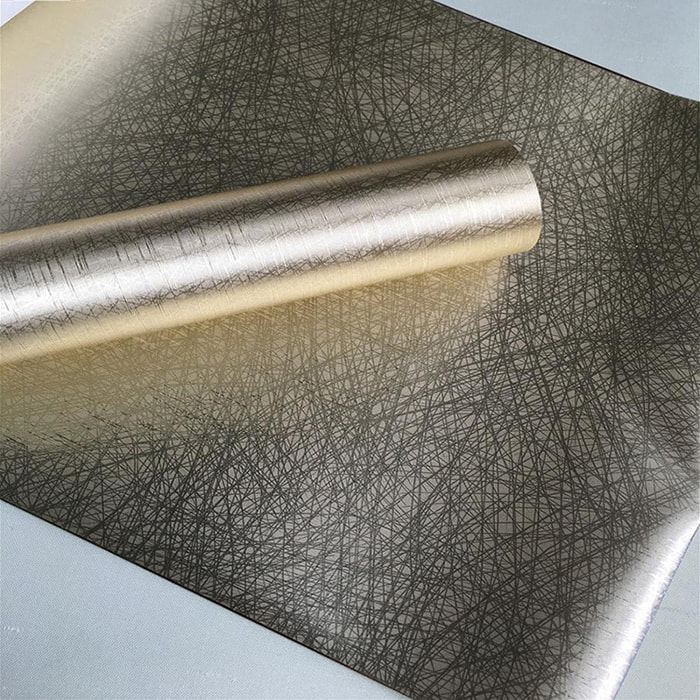

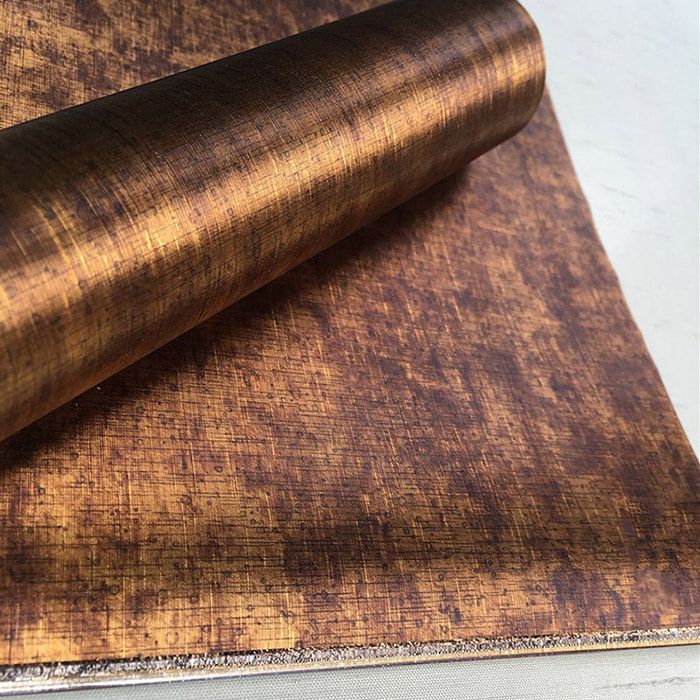

​​​​Metal Texture​​ : Vacuum electroplated aluminum layer (thickness ≥ 2μm), reflectivity ≥ 85%.​​

3D Relief​​: Electric carving mold pressing (depth 0.1-0.3mm), real touch.

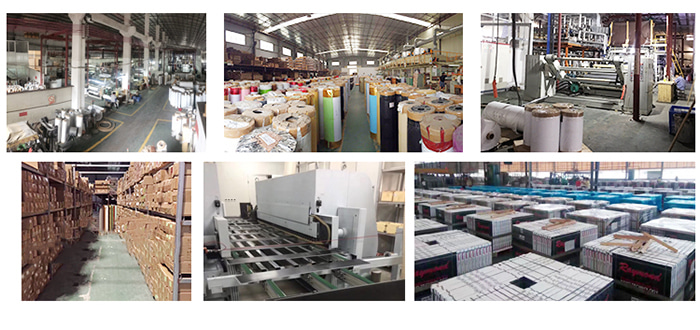

Haining Longtime Industry Co., Ltd is China Wholesale 3D Digital Printing Marble Design PVC/PET Decorative Film for PVC Foam Board Anti-Scratch Marble PVC Film for PUR Laminating Use Suppliers and 3D Digital Printing Marble Design PVC/PET Decorative Film for PVC Foam Board Anti-Scratch Marble PVC Film for PUR Laminating Use Company, established in 2005, our factory started with producing PVC Ceiling and Wall Panels, and has grown to be a professional China PVC ceiling panels manufacturer and a wholesale PVC panels factory, committed to providing our customers with high-quality products and services. After 20 years of development, we now own 5 large factories: Haining Halong PVC Ceiling Factory, Haining Longtime Film Factory, Guangxi PVC Wall Panel Factory, Indonesia PVC Wall Panel Factory, and Vietnam PVC Wall Panel Factory. Our main products include: PVC Ceiling Panels, PVC Wall Panels, WPC Wall Panels, Hot Stamping Foil, PVC Lamination Film, SPC Flooring, WPC Decking, and other related products. Our annual sales can reach up to 35 million USD. We offer 3D Digital Printing Marble Design PVC/PET Decorative Film for PVC Foam Board Anti-Scratch Marble PVC Film for PUR Laminating Use for sale.
