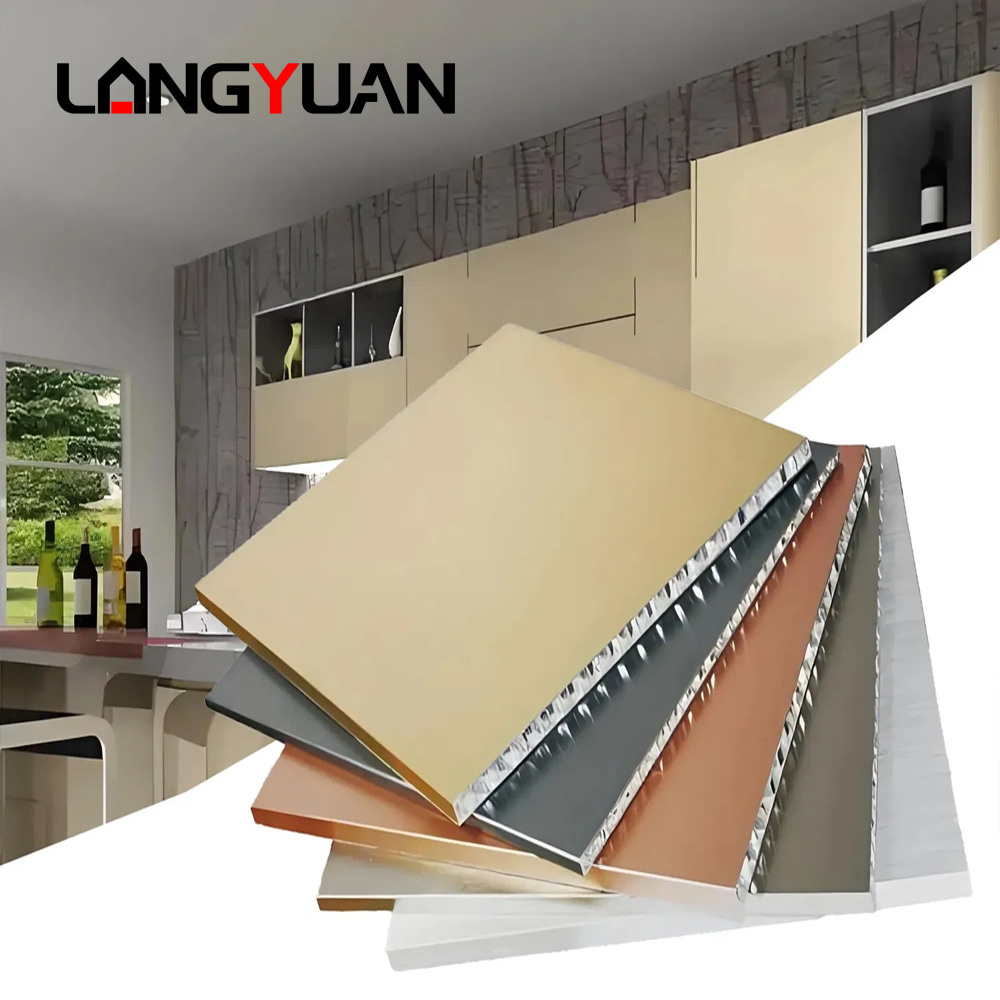

18mm Aluminum Honeycomb Panels for Cabinets and Kitchen Door Aluminum Honeycomb Panels Factory

Material​​ Aluminum panel (anodized/fluorocarbon sprayed) + aluminum honeycomb core (hexagonal structure) + polyurethane/epoxy adhesive​​size

​​Standard specifications: 1220mm×2440mm (support customized width ≤1220mm, length ≤3000mm)​​thickness​​ 5mm-50mm (conventional thickness: 6mm, 8mm, 10mm)

​​Surface treatment​​

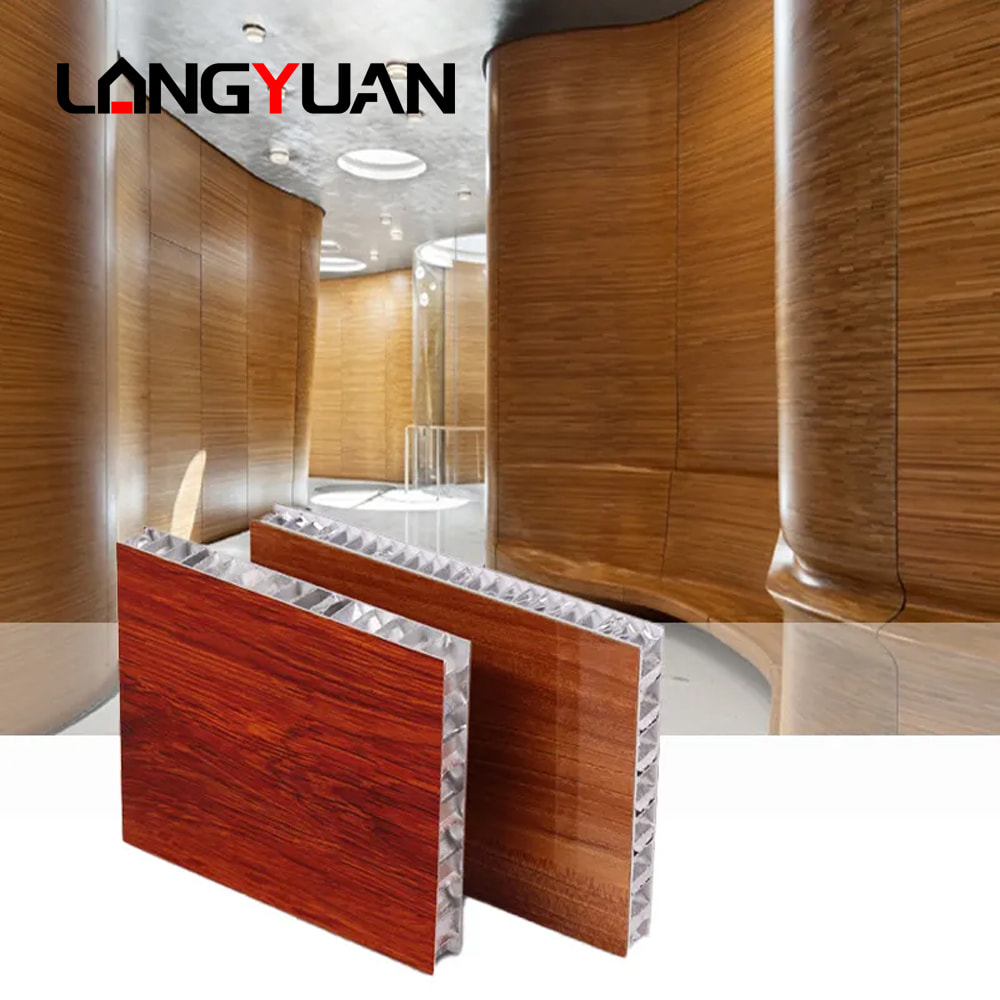

Fluorocarbon spraying, powder spraying, wood grain transfer, stone texture (support customized color and process)​​color​​

Standard colors (silver gray, champagne gold, ivory white, etc.), support Pantone/Pantone color customization​​

Bending strength​​ ≥150MPa (GB/T 6892 standard)​​

Sound insulation performance​​ ≥28dB (ASTM C423 standard, 12mm thickness)​​

Thermal conductivity​​ ≤0.028W/(m·K) (EN 12667 standard, thermal insulation performance is 3 times better than aluminum plate)

Density​​ 2.8-3.5g/cm³ (aluminum honeycomb core + panel composite structure)

​​weight​​ About 2.5kg/m² (taking 10mm thickness as an example, it is 1/3 of the aluminum plate of the same thickness)

​​Fire rating

​​A2 non-flammable (EN 13501-1 standard)​​

Weather resistance​​ UV resistant (QUV aging test ≥ 5000 hours), no fading, no chalking​​Impact resistance​​

No cracks after dropping the ball at a height of 50cm (ASTM D2794 standard)​​

Environmental standards​​ Compliant with RoHS, REACH, no heavy metals, no volatile organic compounds (VOC)

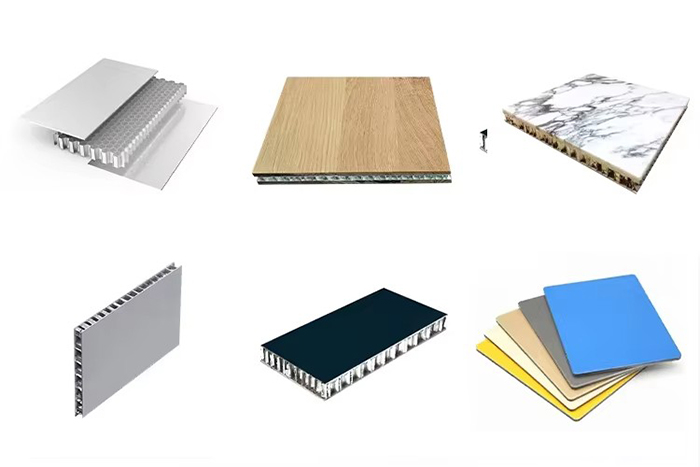

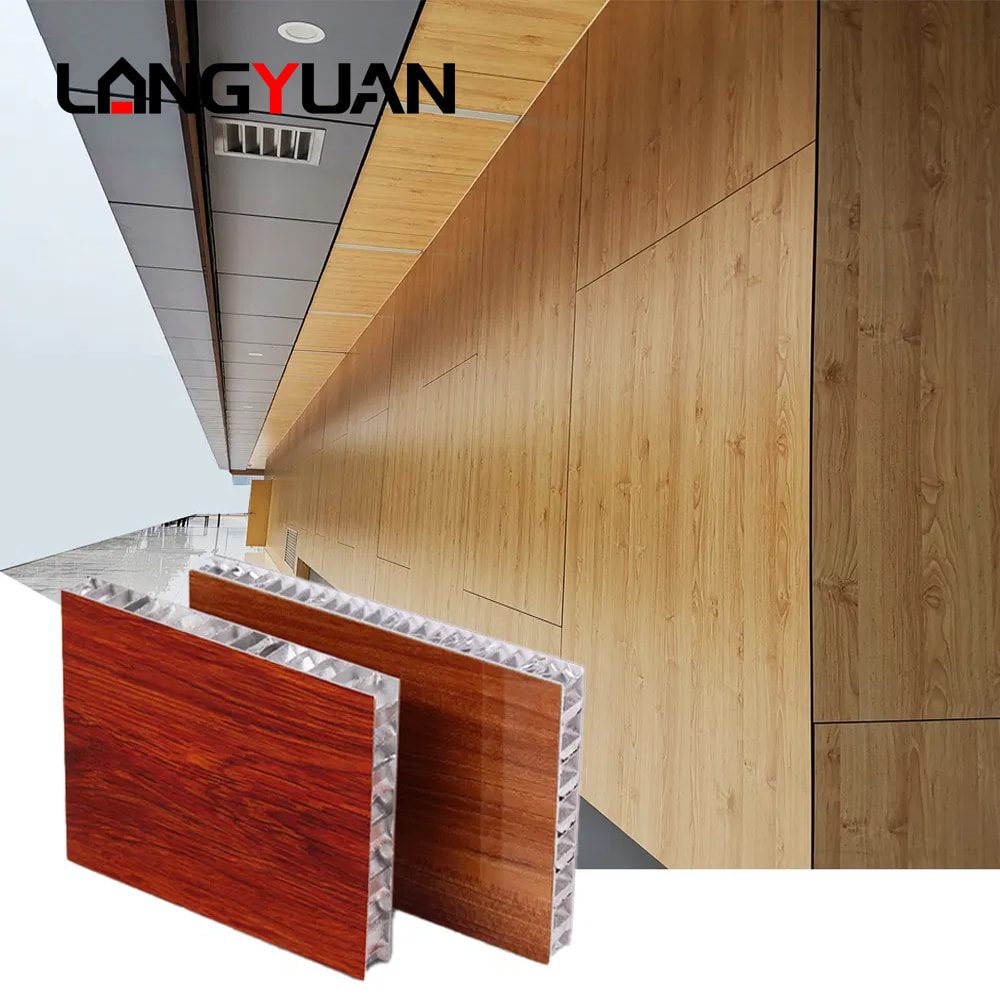

Aluminum honeycomb wall panels are composite panels with high-strength aluminum alloy panels as the surface layer and hexagonal aluminum honeycomb core materials embedded inside. The honeycomb core structure is tightly combined with the panel through adhesives to form a lightweight and high-rigidity whole. The surface is sprayed with fluorocarbon or wood grain transfer technology, which combines metal texture with natural texture, has super corrosion resistance, heat insulation, sound insulation and impact resistance, and is suitable for indoor and outdoor decoration, curtain walls, ceilings and other scenes. It is a high-performance material to replace traditional aluminum panels, stone, and wood.

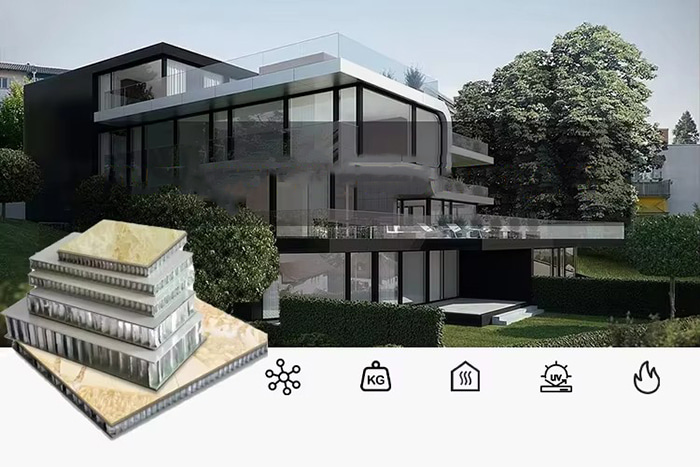

​​Building curtain wall​​​​

Commercial Building/Sports Stadium​​ Lightweight curtain wall system, reducing building load, excellent wind pressure resistance (wind pressure resistance grade ≥9kPa).​​

Advantages​​ : Easy to install (modular assembly), maintenance-free, and service life of more than 25 years.​​

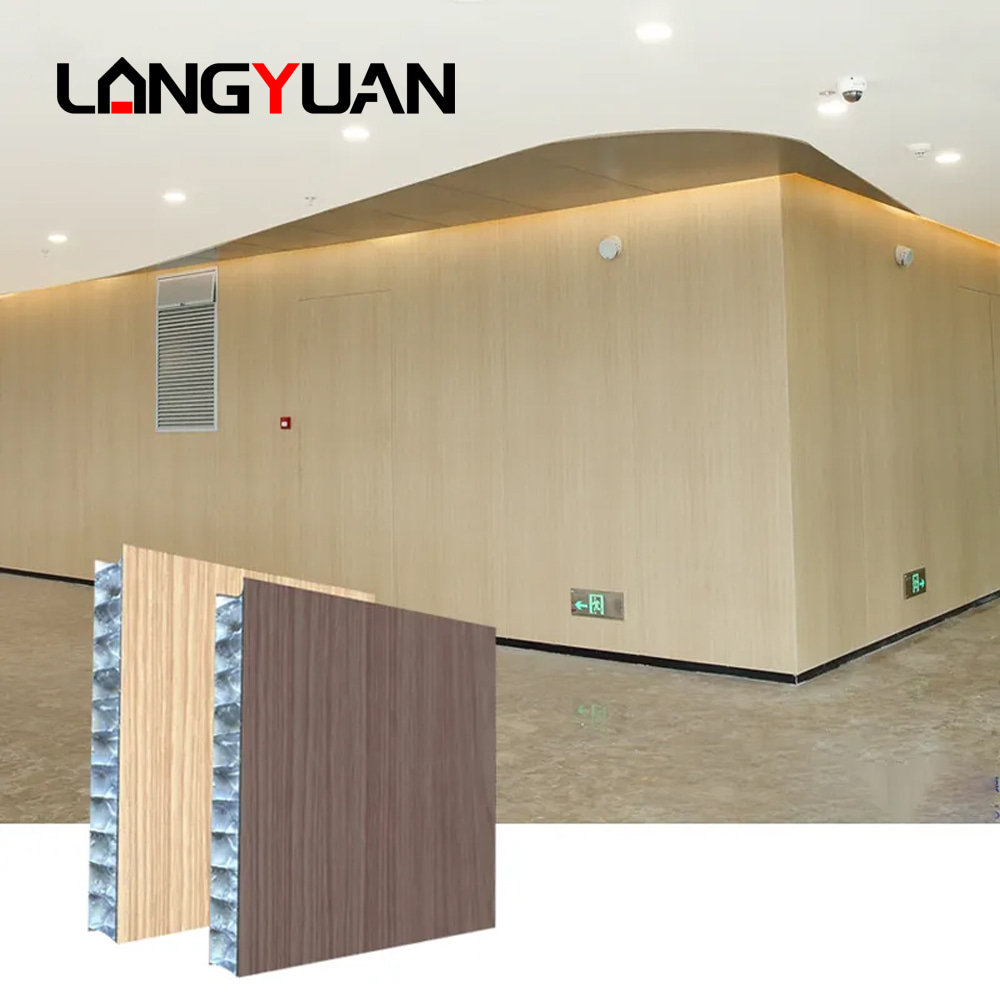

Interior decoration​​​​Hotel/Showroom/Airport​​ : Metal texture walls and ceilings, support special-shaped cutting (laser cutting accuracy ±0.1mm).​​

Advantages​​ : Zero formaldehyde, moisture-proof and mildew-proof, easy to clean.​​

Transportation Facilities​​​​High-speed rail/ship/aircraft​​ : Lightweight interior panel, vibration-resistant and corrosion-resistant (salt spray test ≥ 1000 hours).​​

Advantages​​ : Conforms to aviation grade fire protection standards (A2 grade).​​

Public Facilities​​​​Hospital/School/Subway Station​​ : Antibacterial and mildew-proof surface (antibacterial rate ≥ 99%), anti-bacterial growth.

​​Advantages​​ Strong stain resistance (chemical resistance pH value 3-11).

​​Industrial field​​​​Computer room/laboratory​​ : Heat insulation and noise reduction (noise reduction coefficient NRC ≥ 0.8), adaptable to complex environments.​​

Advantages​​: Electromagnetic shielding performance (conductive coating is optional).



​​Lightweight and high strength​​

The density is only 1/3 of that of steel, and the strength is equivalent to that of aluminum plates of the same thickness, which reduces transportation and installation costs.​​

Excellent thermal insulation​​ The honeycomb core structure forms an air insulation layer, which has a significant energy-saving effect (reducing air conditioning energy consumption by more than 30%).​​

Environmentally friendly and durable​​ Aluminum is 100% recyclable, and the fluorocarbon coating on the surface is weather-resistant for more than 20 years without fading or peeling.​​

Diversified Design​​ Supports curved surface modeling (radius ≥ 300mm) to meet architectural aesthetic requirements.​​

Efficient installation​​ Clip-on or back-hanging installation, no keel required, shortening construction period by 40%.​​

Fire safety​​ A2 grade is non-combustible and meets the highest global fire protection standards (such as American standard ASTM E84).



Core material manufacturing

​​​​Aluminum honeycomb core molding​​ : The aluminum foil is stretched and etched to form a regular hexagonal honeycomb structure with an aperture accuracy of ±0.05mm.​​

Adhesive curing​​ : Use epoxy modified polyurethane adhesive, high temperature and high pressure curing (temperature 80℃±5℃, pressure 0.8MPa).​​

Panel processing​​​​

Anodizing​​ : Surface hardness reaches HV150, scratch resistance (pencil hardness 3H).​​

Fluorocarbon spraying​​ : Three-coat-one-bake process, film thickness ≥40μm, salt spray resistance ≥5000 hours.​​

Composite process​​​​Hot pressing composite​​ ：High temperature (180℃) and high pressure (10kg/cm²) lamination ensures seamless combination of the core layer and the panel.

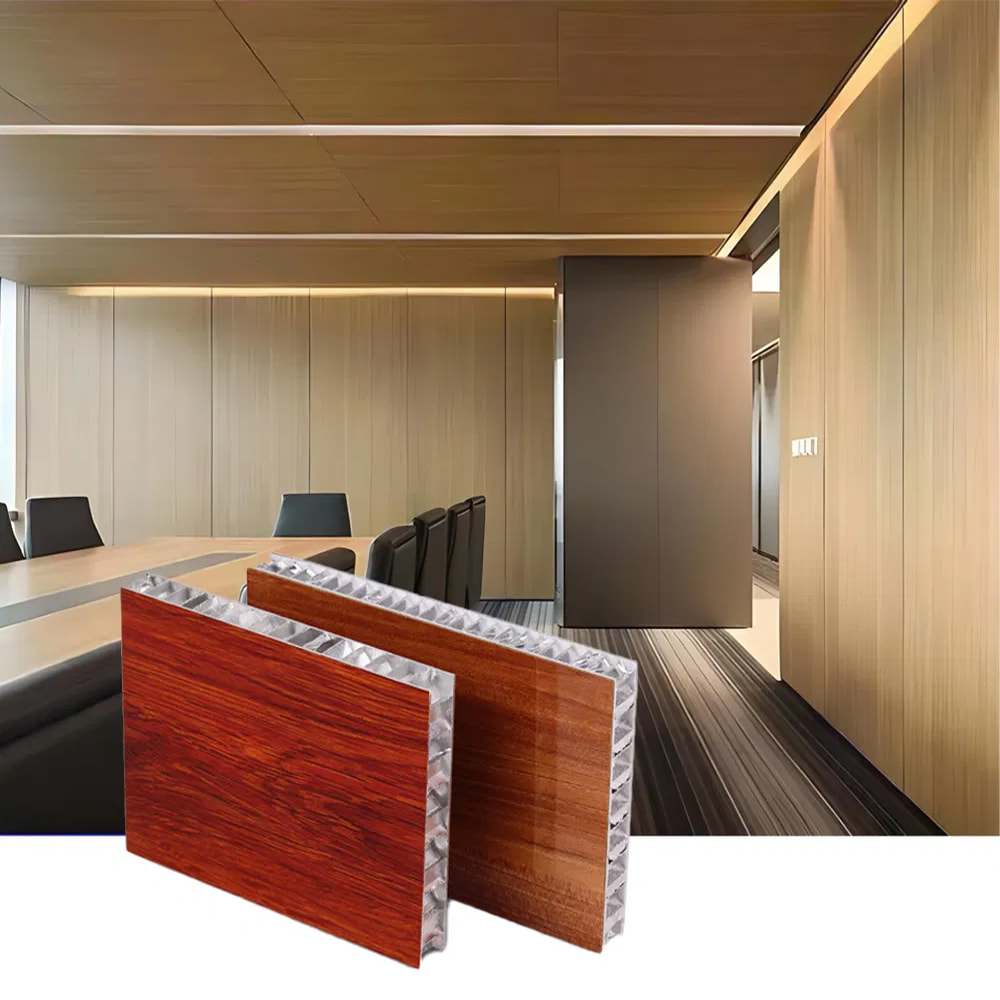

​​Surface decoration​​​​Wood grain transfer​​：Using vacuum thermal transfer technology, the texture clarity reaches 1200dpi, and the adhesion is ≥ level 1 (ASTM D3359).​​

Stone texture​​ : High-pressure water jet engraving, simulation degree ≥95%.​​

Quality Inspection​​​​

Peel strength test​​ ：≥12N/mm (ASTM D1876 standard).​​

Combustion test​​ : Complies with A2 class non-flammable (EN 13501-1).
