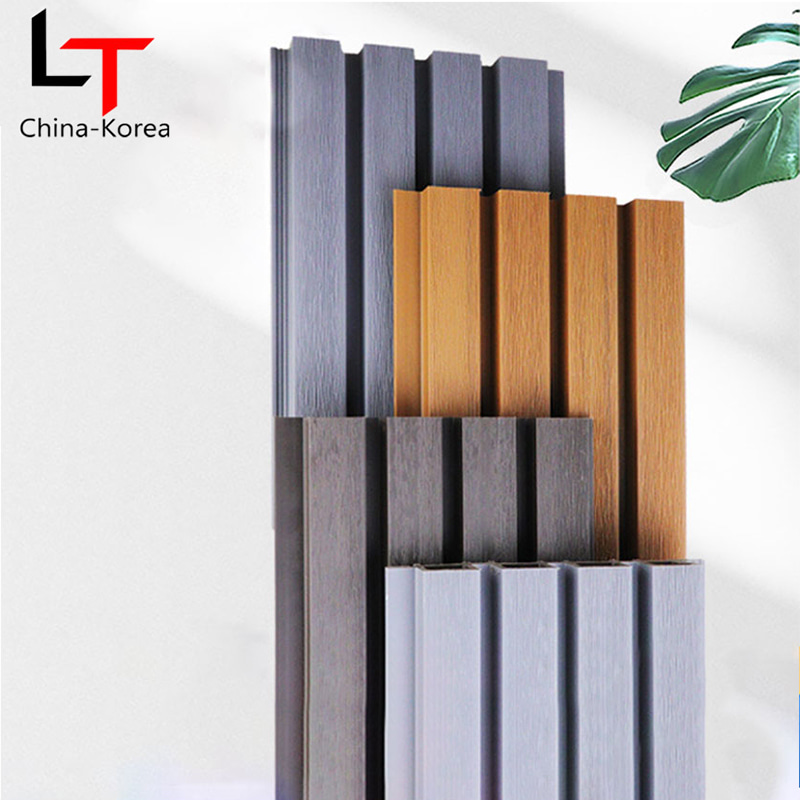

Wood Texture and Black Pattern Exterior Slat Wall Cladding External Decorative House Siding Wpc Fluted Outdoor Wall Panels

Vinyl chloride (PVC resin) + wood fiber/bamboo fiber + calcium carbonate powder + stabilizer + anti-ultraviolet additive

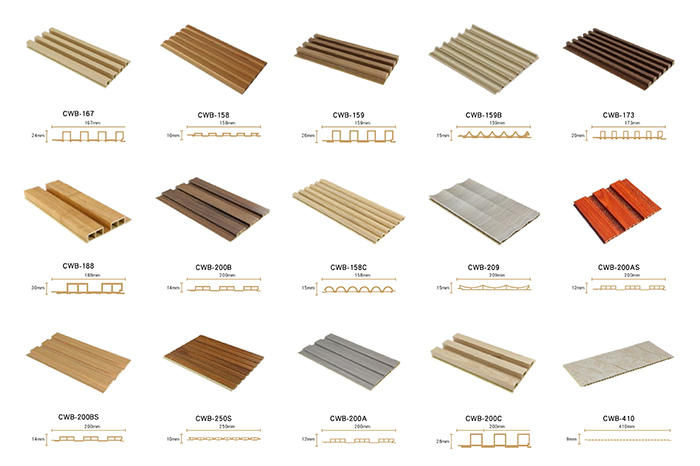

Size​​

Standard specifications: 1220mm×2440mm/1200mm×200mm (support customized width ≤1220mm, length ≤6m)

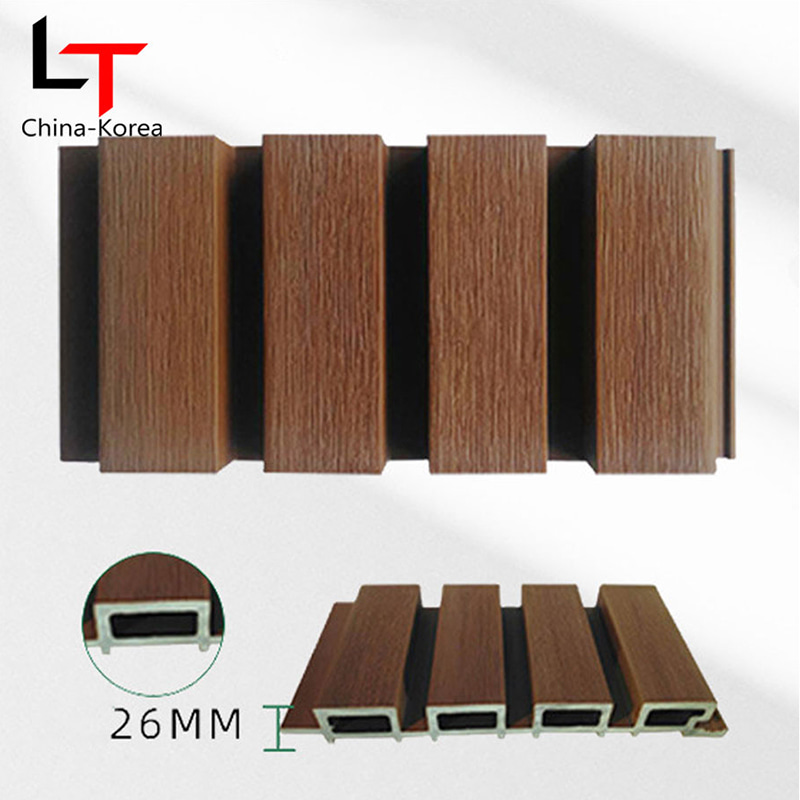

​​thickness​​8mm-25mm (conventional thickness: 12mm, 15mm, 18mm)

​​Surface treatment​​ Imitation wood grain, imitation stone grain, 3D relief, UV coating (matte/gloss)​​color​​ Natural wood color, stone color, metal color (support Pantone color customization

)​​Bending strength​​ ≥150MPa (GB/T 6892 standard)​​Impact resistance​​ ≥50kJ/m² (GB/T 1043.1 standard)​​

Fire rating​​ B1 flame retardant (GB 8624 standard)​​Moisture resistance​​ Water absorption expansion rate ≤ 0.3% (GB/T 17657 standard, 24-hour water immersion test)​​

Weather resistance​​ Ultraviolet accelerated aging test ≥ 2000 hours (ΔE ≤ 3.0)​​

Environmental standards​​ Compliant with RoHS, EN 717-1 (formaldehyde ≤ 0.05mg/m³)​​

Density​​ 1.8-2.5g/cm³ (composite structure of wood powder and PVC)​​

Weight ​​About 2.8kg/m² (taking 12mm thickness as an example, which is 1/3 of the antiseptic wood)

​​Temperature resistance​​ -40℃ to 70℃ (no deformation during long-term use)

WPC outdoor board is a special outdoor decorative board made of wood fiber or bamboo fiber as the core raw material, compounded with PVC resin, calcium carbonate powder and anti-ultraviolet additives through high temperature and high pressure process. The surface adopts UV curing coating or high-precision imitation wood/stone grain transfer technology, which combines the texture of natural wood with the weather resistance of plastic, and has the characteristics of waterproof and moisture-proof, mildew-proof and antibacterial, anti-ultraviolet, fire-retardant, etc. It is suitable for scenes such as garden landscape, exterior wall decoration, outdoor furniture, etc., and is an environmentally friendly alternative to traditional antiseptic wood and stone.

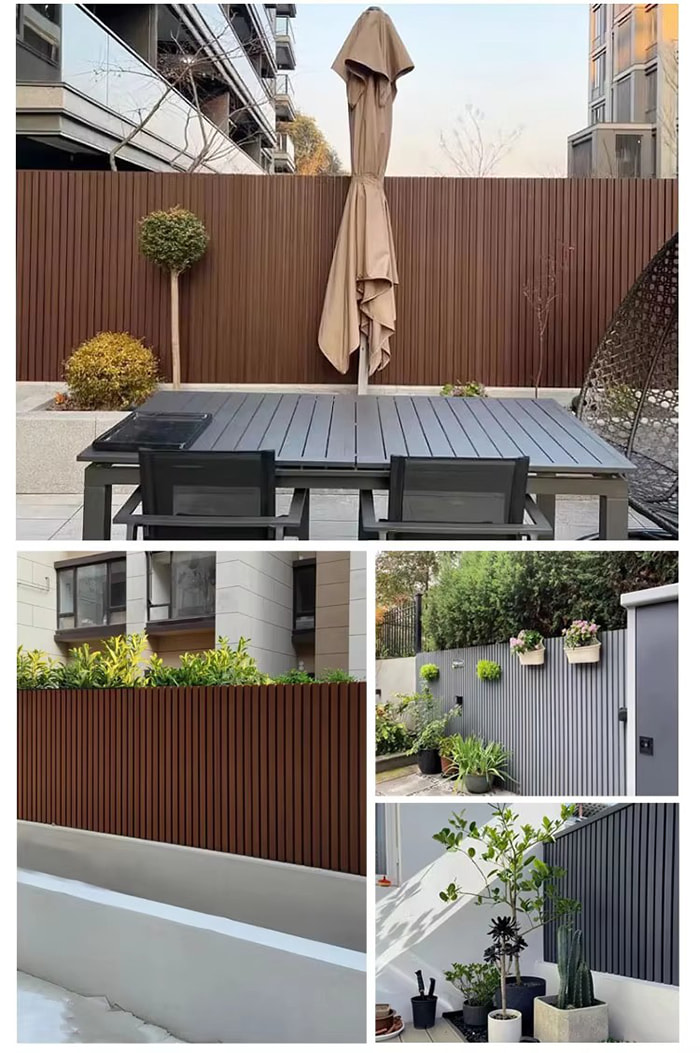

Landscape​​​​Trails/Plank Road​​ : Anti-slip surface (friction coefficient ≥ 0.6), resistant to humid environment (water absorption rate ≤ 0.3%).​​

Flower box/tree pond​​ : Corrosion resistant (acid and alkali resistant pH value 3-11), suitable for long-term outdoor exposure.

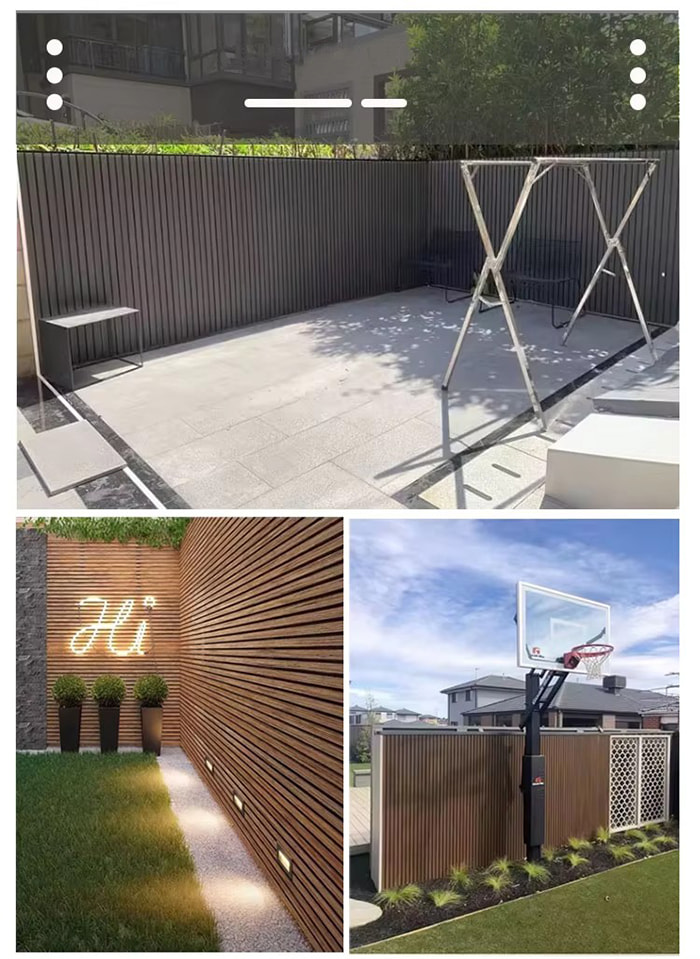

​​Building exterior​​​​

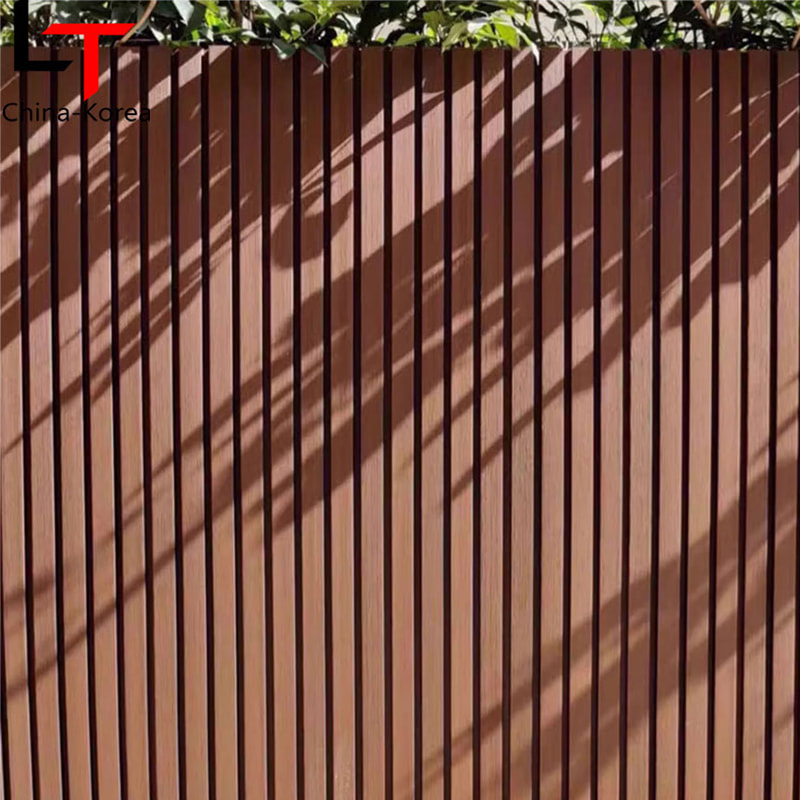

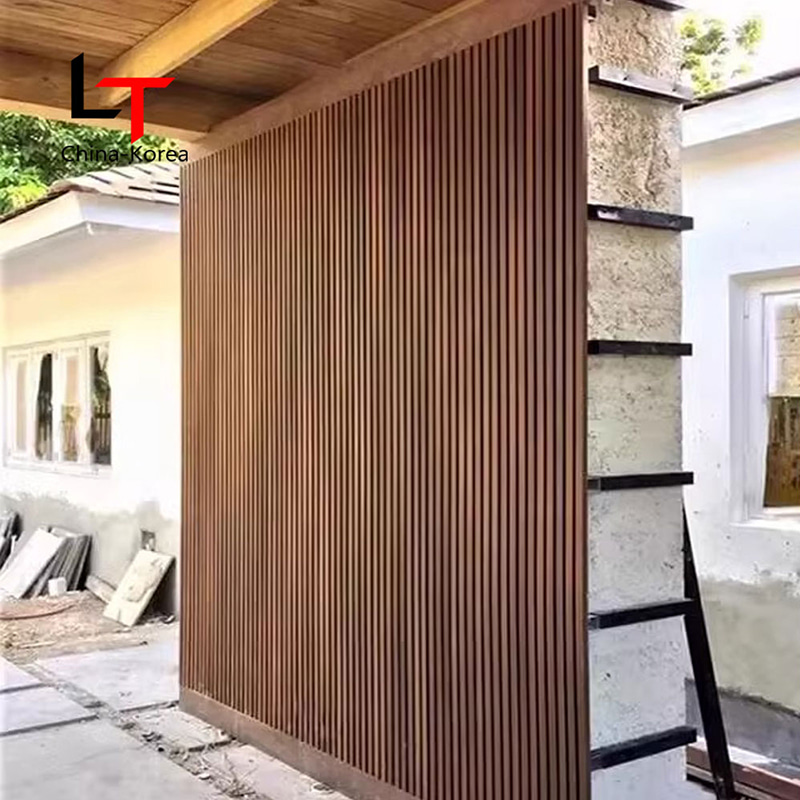

Exterior wall decorative panels​​ Anti-ultraviolet (accelerated aging test ΔE≤3.0), reduce fading.

​​Awning/sunshade​​ : Fire protection grade B1 (flame spread time ≥ 30 minutes), high safety.​​

Commercial facilities

​​​​Hotels/Resorts​​ : Customized 3D relief modeling to enhance the landscape design sense.​​

Restaurants/Cafes​​ : Easy to clean surface (oil resistance test ≥ level 5), low maintenance cost.​​

Public Facilities​​​​

Park benches/trash cans​​ : Antibacterial and mildew-proof (antibacterial rate ≥ 99%), suitable for high-traffic environments.​​

Subway station/Airport​​: Strong weather resistance (stable from -40℃ to 70℃), in line with public safety standards.

Super weather resistance​​ Anti-UV additives + surface coating, weather-resistant life ≥ 15 years (no fading, no peeling).​​

Environmental safety

​​The raw materials are formaldehyde-free, heavy metal-free, CARB/FSC-certified, and 100% recyclable.

​​Diversified Design​​ Supports 100+ effects such as imitation wood grain, stone grain, 3D relief, etc., and can customize gradients and artistic patterns.​​

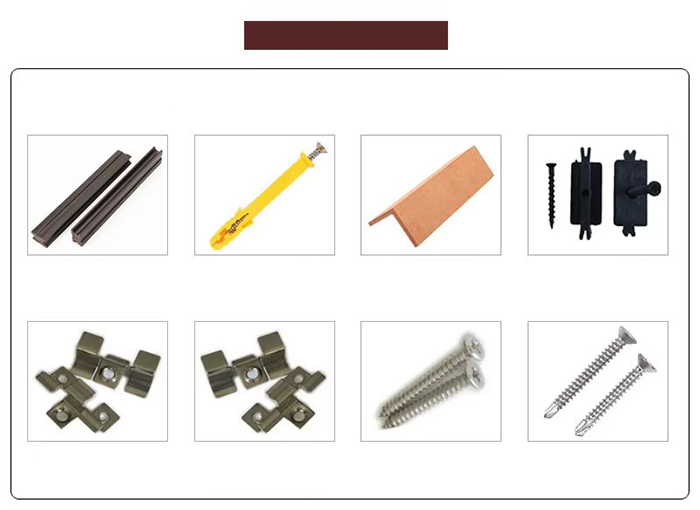

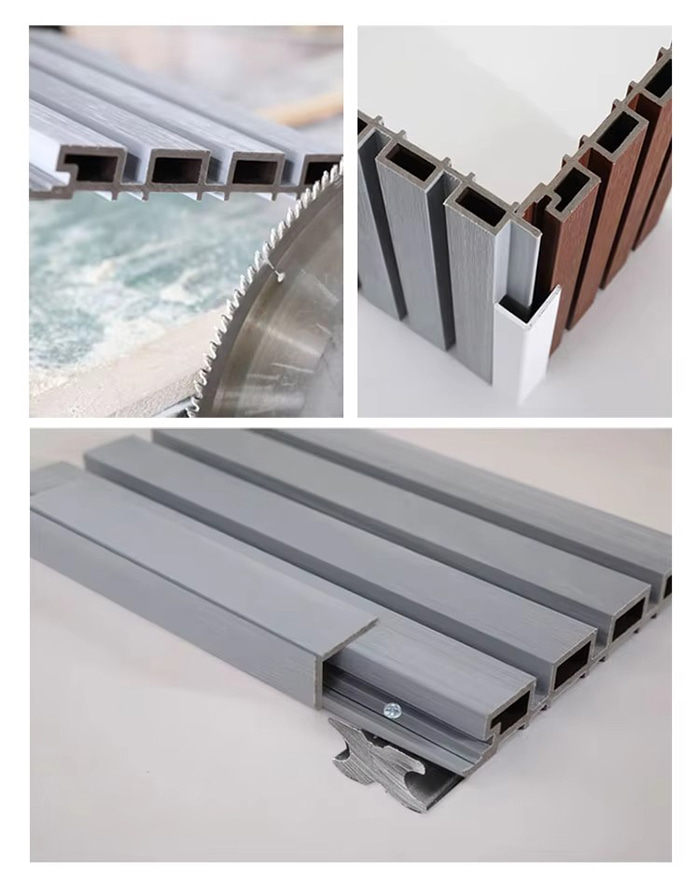

Easy installation​​ Clip-on/keel installation (no glue required), modular assembly, shortening construction period by 70%.​​

Economical​​ The overall cost is lower than that of antiseptic wood (the price is about 1/2 of that of antiseptic wood), and the maintenance cost is low (no need to refresh with paint).

​​Functional integration​​ LED light strips and sensors can be integrated to achieve intelligent lighting or environmental monitoring (customization required).

​​Raw material handling​​​​

Wood fiber modification​​ ：The wood powder is carbonized and dried (moisture content ≤ 8%) to enhance its compatibility with plastics.​​

Anti-aging formula​​ : Add hindered amine light stabilizer (HALS) and UV absorber (UV-Absorber) to improve weather resistance.​​

Extrusion​​​​Twin screw coextrusion​​ : PVC substrate and wood fiber are mixed and extruded at 180℃-220℃, and the thickness error is ≤±0.2mm.

​​Imitation wood grain technology​​ : Vacuum thermal transfer technology, texture clarity up to 1200dpi, adhesion ≥ level 1 (ASTM D3359).​​

Surface treatment​​​​

UV paint​​ : Three-coat-one-bake process, film thickness ≥40μm, wear resistance up to 10,000 revolutions (Taber test).​​

Hydrophobic structure​​ : Surface micropore design (pore diameter 0.5-1mm), drainage efficiency increased by 50%.

​​Quality Inspection​​​​

Fire test​​ : GB 8624 standard, B1 flame retardant.​​Environmental certification​​ : Passed CARB certification, CE certification (EU), China Environmental Labeling (Ten-Ring Certification).​​

Special Process

​​​​Anti-creep design​​ Add a glass fiber reinforcement layer (5%-10%) to reduce long-term load-bearing deformation.​​

Edge protection​​: Rounded corners/beveled edges (R angle ≥ 3mm) to prevent bumps and improve aesthetics.

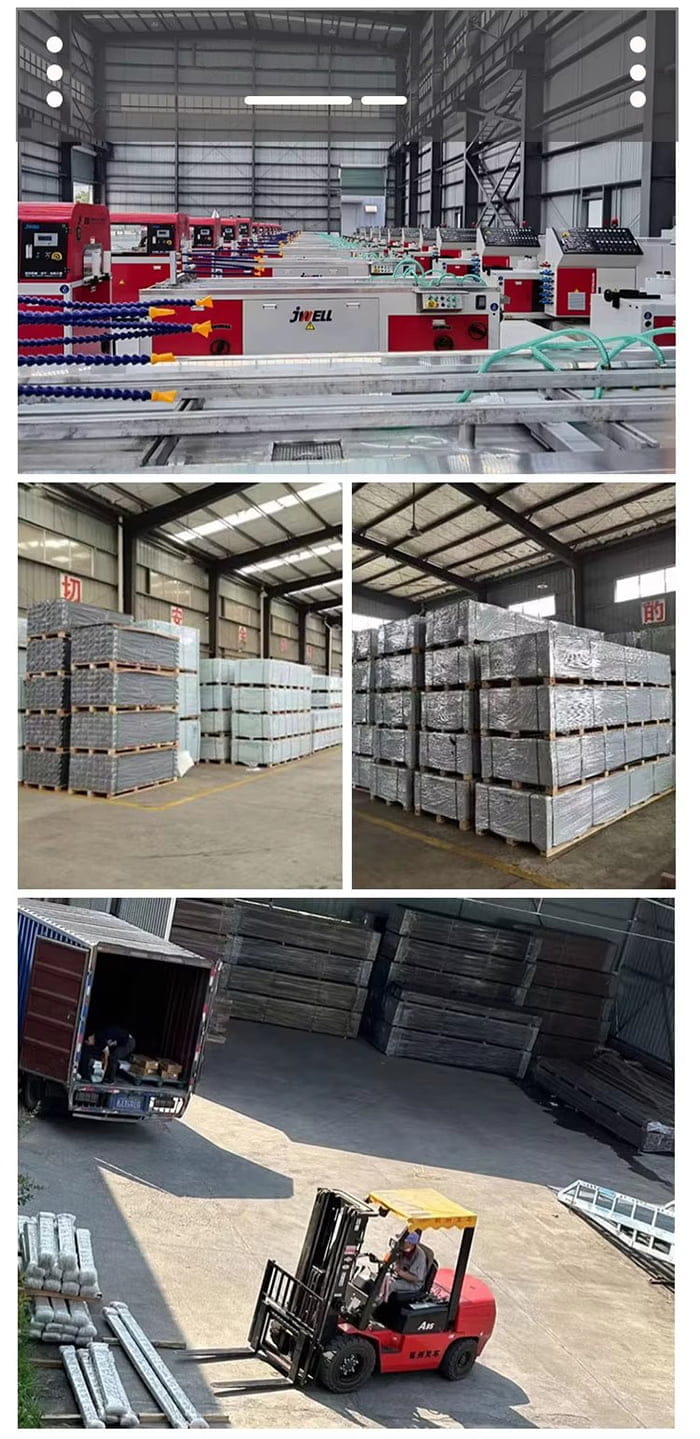

Haining Longtime Industry Co., Ltd is China Wholesale Wood Texture and Black Pattern Exterior Slat Wall Cladding External Decorative House Siding Wpc Fluted Outdoor Wall Panels Suppliers and Wood Texture and Black Pattern Exterior Slat Wall Cladding External Decorative House Siding Wpc Fluted Outdoor Wall Panels Company, established in 2005, our factory started with producing PVC Ceiling and Wall Panels, and has grown to be a professional China PVC ceiling panels manufacturer and a wholesale PVC panels factory, committed to providing our customers with high-quality products and services. After 20 years of development, we now own 5 large factories: Haining Halong PVC Ceiling Factory, Haining Longtime Film Factory, Guangxi PVC Wall Panel Factory, Indonesia PVC Wall Panel Factory, and Vietnam PVC Wall Panel Factory. Our main products include: PVC Ceiling Panels, PVC Wall Panels, WPC Wall Panels, Hot Stamping Foil, PVC Lamination Film, SPC Flooring, WPC Decking, and other related products. Our annual sales can reach up to 35 million USD. We offer Wood Texture and Black Pattern Exterior Slat Wall Cladding External Decorative House Siding Wpc Fluted Outdoor Wall Panels for sale.
