Melinco Interior Decoration Faux Stone Texture Flat Panel PVC Ceiling Panels Marble Grain Wall Board Waterpoof Sheet

​Material​​ PVC resin (40%-60%) + calcium carbonate powder + stabilizer​​

Size​​

Standard specifications: 600mm×600mm/1220mm×2440mm (support customized width ≤1220mm, length ≤5.95m)​​

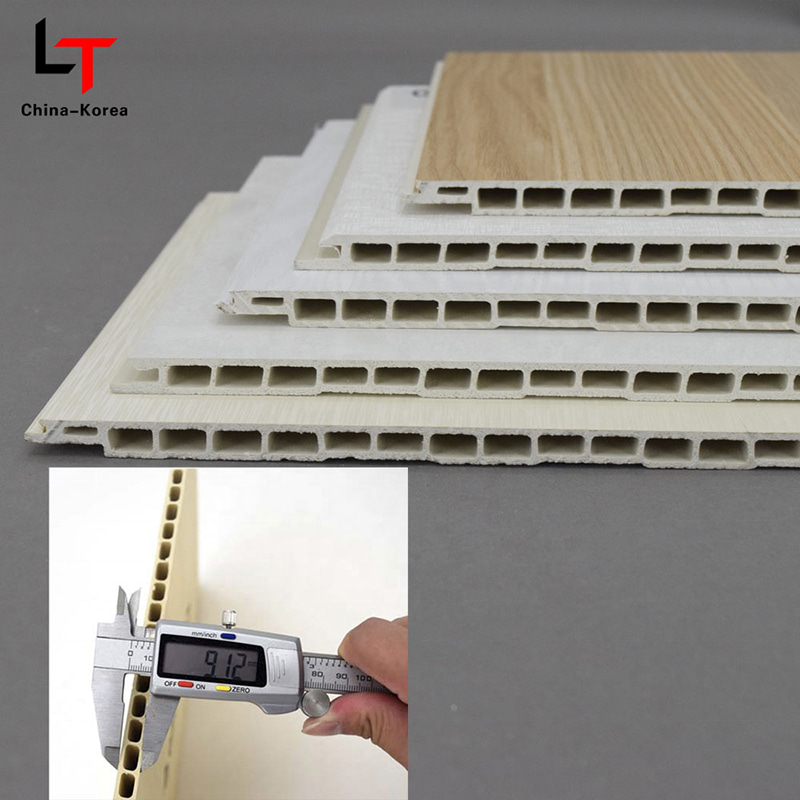

thickness​​ 5mm-20mm (conventional thickness: 6mm, 8mm, 10mm)

​​Surface treatment​​ Printing, transfer, roller coating, high gloss, lamination (matte/gloss supported)​​

Color​​

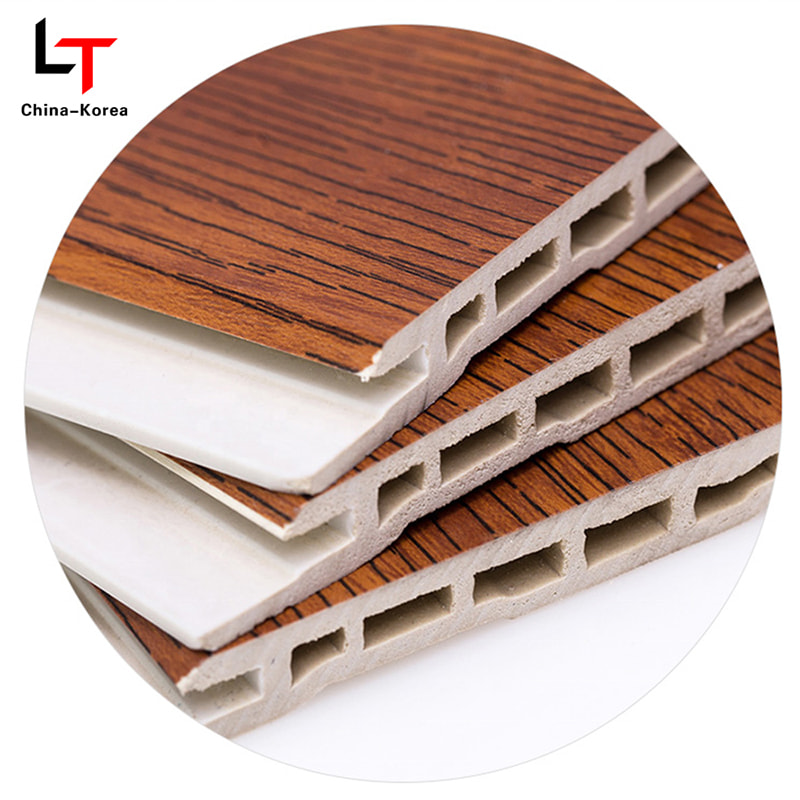

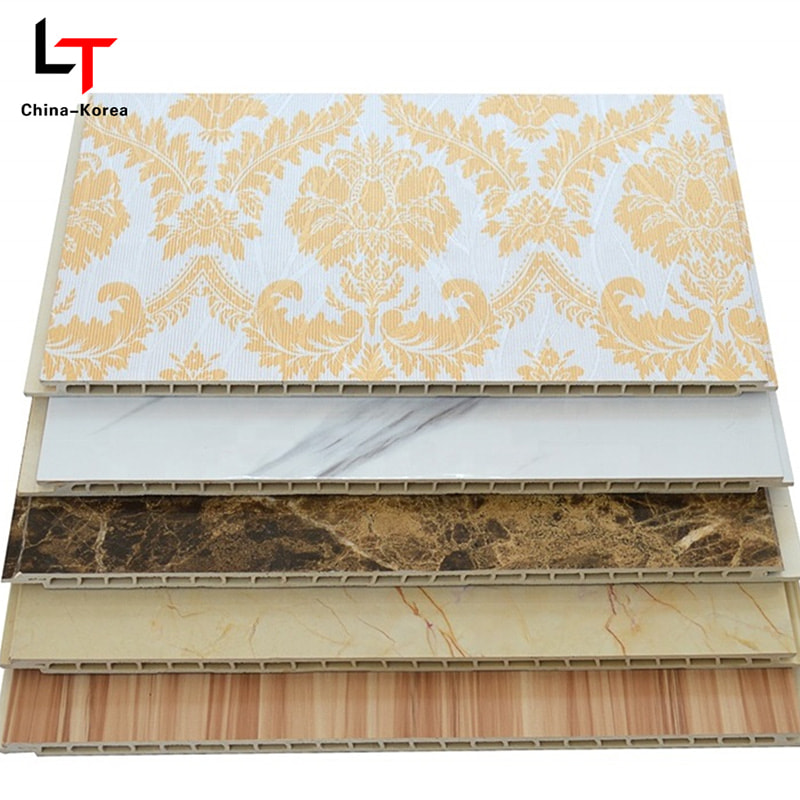

Natural wood grain, stone grain, solid color (supports Pantone color customization)

Tensile strength​​ ≥40MPa (GB/T 1040 standard)

​​Impact resistance​​ ≥50kJ/m² (GB/T 1043.1 standard)

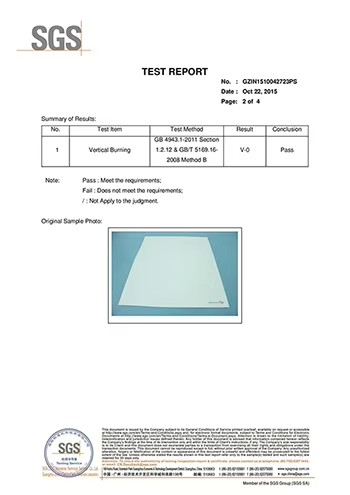

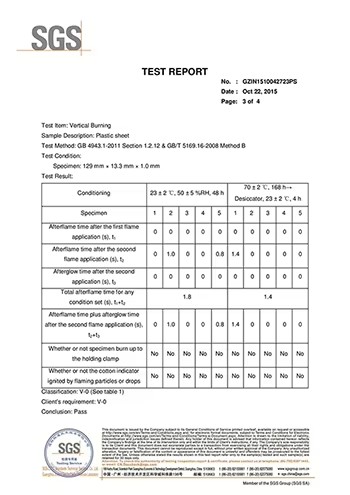

​​Fire rating​​ B1 flame retardant (GB 8624 standard)

​​Moisture resistance​​Water absorption expansion rate ≤ 0.5% (GB/T 17657 standard, 24-hour water immersion test)​​

Light transmittance​​ ≥90% (applicable to skylight scenes)​​

Environmental standards​​ Compliant with RoHS, EN 717-1 (formaldehyde ≤ 0.05mg/m³)​​

Density​​ 1.2-1.5g/cm³​​

Weight​​ About 2.0-3.5kg/m² (taking 12mm thickness as an example)​​

Temperature resistance​​ -20℃ to 60℃ (no deformation during long-term use)

PVC ceiling is a decorative material made of polyvinyl chloride (PVC) resin as the main raw material, calcium carbonate powder and stabilizer are added, and it is compounded through high temperature and high pressure process. The surface adopts printing, transfer or lamination technology, which can simulate various textures such as wood grain and stone grain, and has the characteristics of waterproof and moisture-proof, fire retardant, light weight and high strength. It is suitable for scenes with high humidity or high decorative requirements such as kitchens, bathrooms, hospitals, and commercial spaces, and is an ideal substitute for traditional gypsum boards and aluminum gussets.

Application scenarios and scope of application​​​​

Residential Renovation​​​​Kitchen/Bathroom​​ : Excellent waterproof and moisture-proof performance (water absorption rate ≤ 0.5%), can directly contact with open water environment.​​

Children's room/elderly room​​ : Rounded corner anti-collision design + antibacterial surface (antibacterial rate ≥ 99%), safe and durable.​​

Commercial Space​​​​Hotel/Shopping Mall​​ ：The wood grain/stone grain design enhances the texture of the space and supports quick disassembly and renovation (reuse rate ≥ 90%).

​​Showroom/Office​​ : Sound absorption and noise reduction (noise reduction coefficient NRC ≥ 0.6), improving the acoustic environment.​​

Public Facilities​​​​Hospital/School​​ : Antibacterial and mildew-proof (in accordance with GB 15979 standard), strong stain resistance (chemical resistance pH value 3-11).​​

Subway station/Airport​​ : Fire retardant (flame spread time ≥ 30 minutes), in line with public place safety standards.​​

Special scenarios​​​​

Computer room/laboratory​​：Antistatic treatment (surface resistance ≤1×10⁶Ω), adapted to the environment of precision equipment.

Product Features/Advantages​​​​

Environmental safety​​ The raw materials are formaldehyde-free, heavy metal-free, CARB/FSC-certified, and 100% recyclable.​​

Excellent performance​​ The moisture resistance is better than that of ordinary wood veneer (water absorption expansion rate ≤ 0.5%), and the deformation resistance is outstanding. It is scratch-resistant (pencil hardness 3H), and the service life is twice that of PVC gusset plate.​​

Diversified Design​​ Supports more than 100 patterns including wood grain, stone grain, solid color, etc., and can customize gradient and artistic patterns.​​

Easy installation​​ Snap-on installation (no glue required), disassembly reuse rate ≥ 90%, construction period shortened by 60%.​​Economical​​ The overall cost is lower than that of solid wood panels (the price is about 1/4 of solid wood), and the maintenance cost is low (no need to paint or refresh).​​

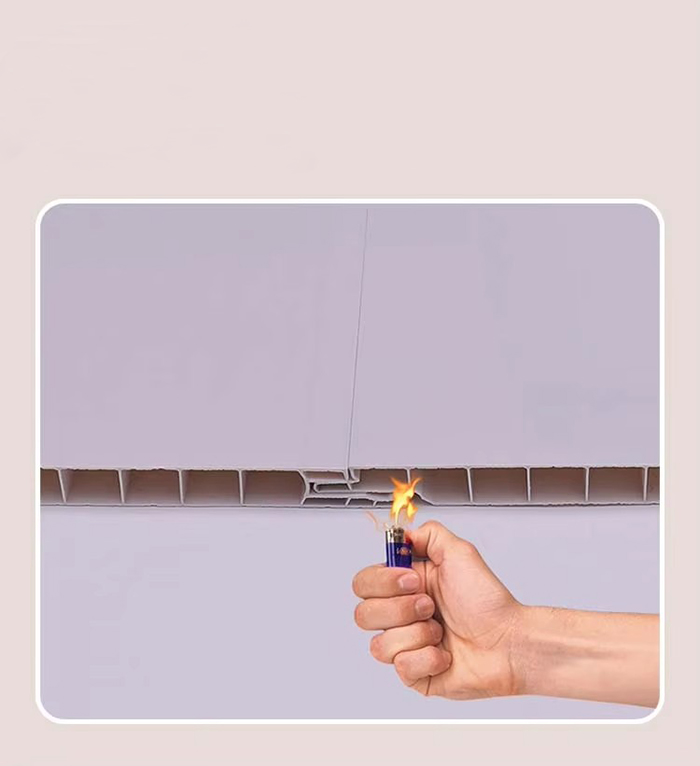

Fire safety​​B1 grade flame retardant (flame spread time ≥ 30 minutes), in line with fire protection requirements for public places.

Technology and craftsmanship​​​​Raw material handling

​​​​PVC mixed with calcium carbonate​​ : Calcium carbonate powder (80-120 mesh) is mixed with PVC resin in proportion to enhance the rigidity of the board.​​

Stabilizer addition​​ : Use lead salt composite stabilizer to ensure no decomposition during high temperature extrusion.​​

Molding process

​​​​Calendering​​ ：High temperature (180℃-220℃) and high pressure (15kg/cm²) compounding, thickness error ≤±0.2mm.​​

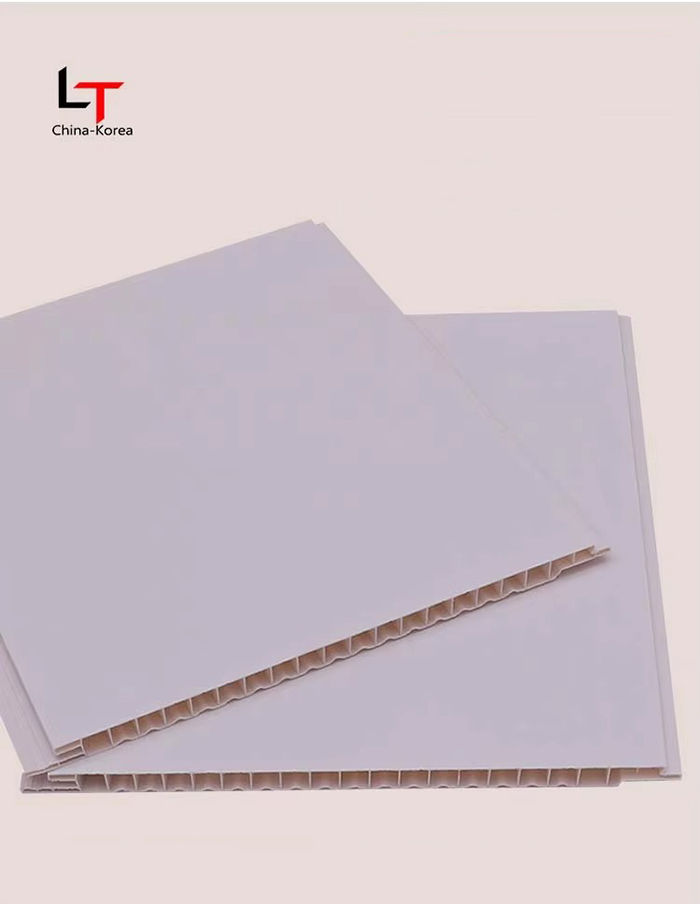

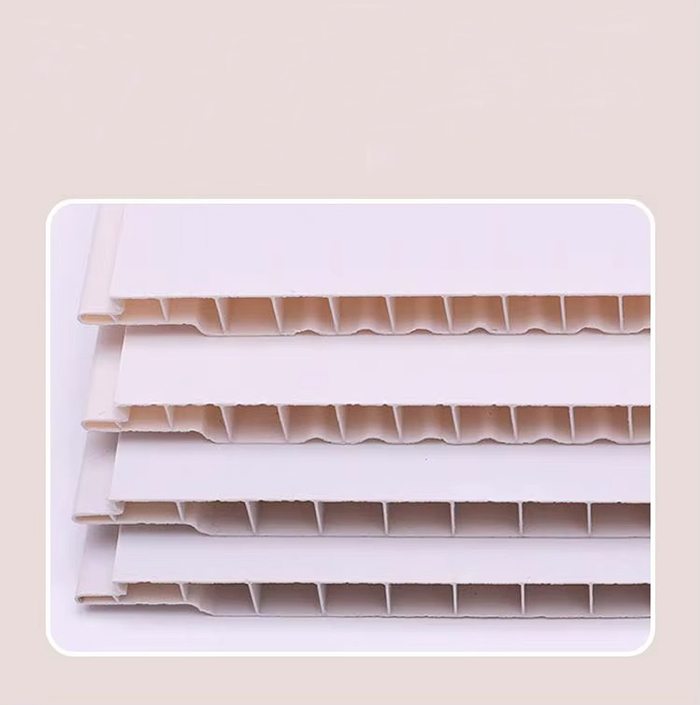

Hollow structure design​​ : The heat transfer coefficient is only one thousandth of that of aluminum, and it has excellent thermal insulation performance.​​

Surface treatment​​​​UV paint​​ : Three-coat-one-bake process, film thickness ≥30μm, wear resistance up to 5000 revolutions (Taber test).

​​Wood grain transfer​​ Vacuum thermal transfer technology, texture clarity up to 1200dpi, adhesion ≥ level 1 (ASTM D3359).​​

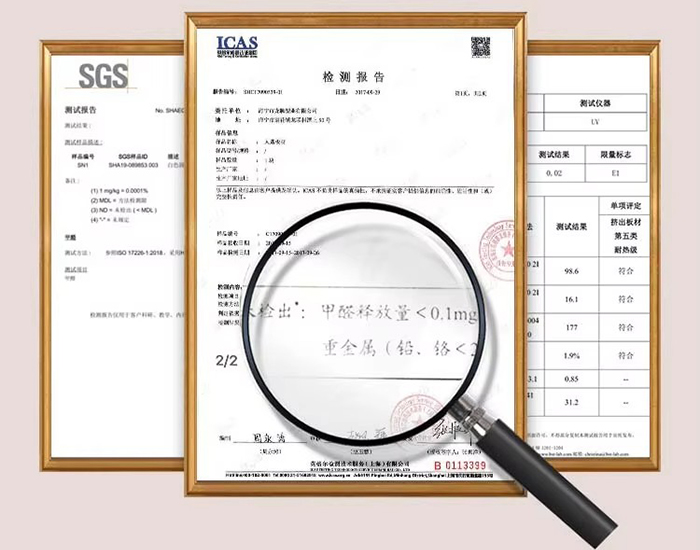

Quality Inspection​​​​Formaldehyde release​​ : EN 717-1 standard, closed cabin test ≤ 0.05mg/m³.

​​Fire test​​ : GB 8624 standard, B1 flame retardant.​​Environmentally friendly process​​ It adopts lead-free and cadmium-free environmentally friendly formula, and the circulating water cooling system during the production process reduces pollution.

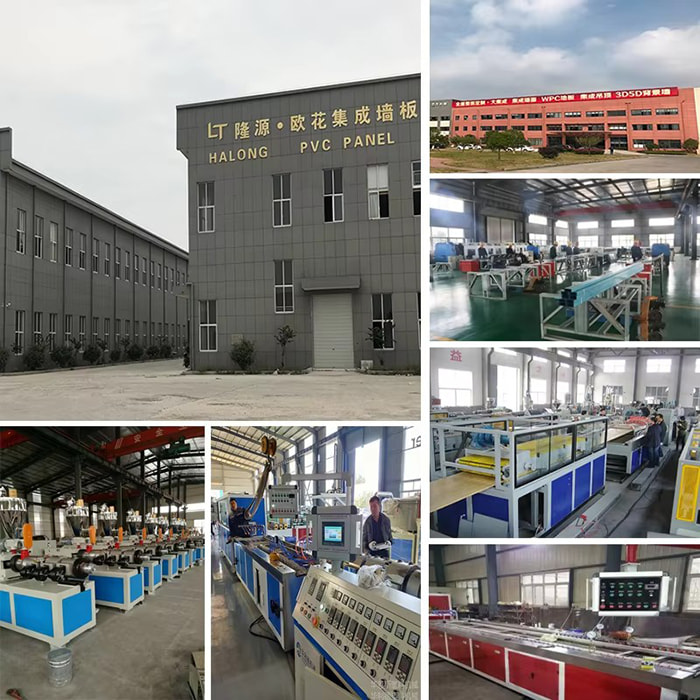

Haining Longtime Industry Co., Ltd is China Wholesale Melinco Interior Decoration Faux Stone Texture Flat Panel PVC Ceiling Panels Marble Grain Wall Board Waterpoof Sheet Suppliers and Melinco Interior Decoration Faux Stone Texture Flat Panel PVC Ceiling Panels Marble Grain Wall Board Waterpoof Sheet Company, established in 2005, our factory started with producing PVC Ceiling and Wall Panels, and has grown to be a professional China PVC ceiling panels manufacturer and a wholesale PVC panels factory, committed to providing our customers with high-quality products and services. After 20 years of development, we now own 5 large factories: Haining Halong PVC Ceiling Factory, Haining Longtime Film Factory, Guangxi PVC Wall Panel Factory, Indonesia PVC Wall Panel Factory, and Vietnam PVC Wall Panel Factory. Our main products include: PVC Ceiling Panels, PVC Wall Panels, WPC Wall Panels, Hot Stamping Foil, PVC Lamination Film, SPC Flooring, WPC Decking, and other related products. Our annual sales can reach up to 35 million USD. We offer Melinco Interior Decoration Faux Stone Texture Flat Panel PVC Ceiling Panels Marble Grain Wall Board Waterpoof Sheet for sale.
