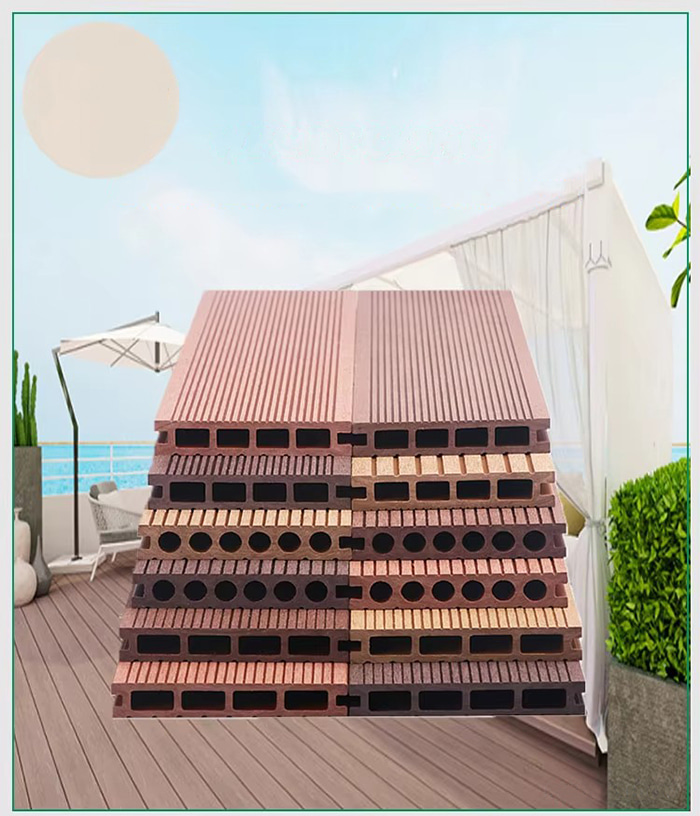

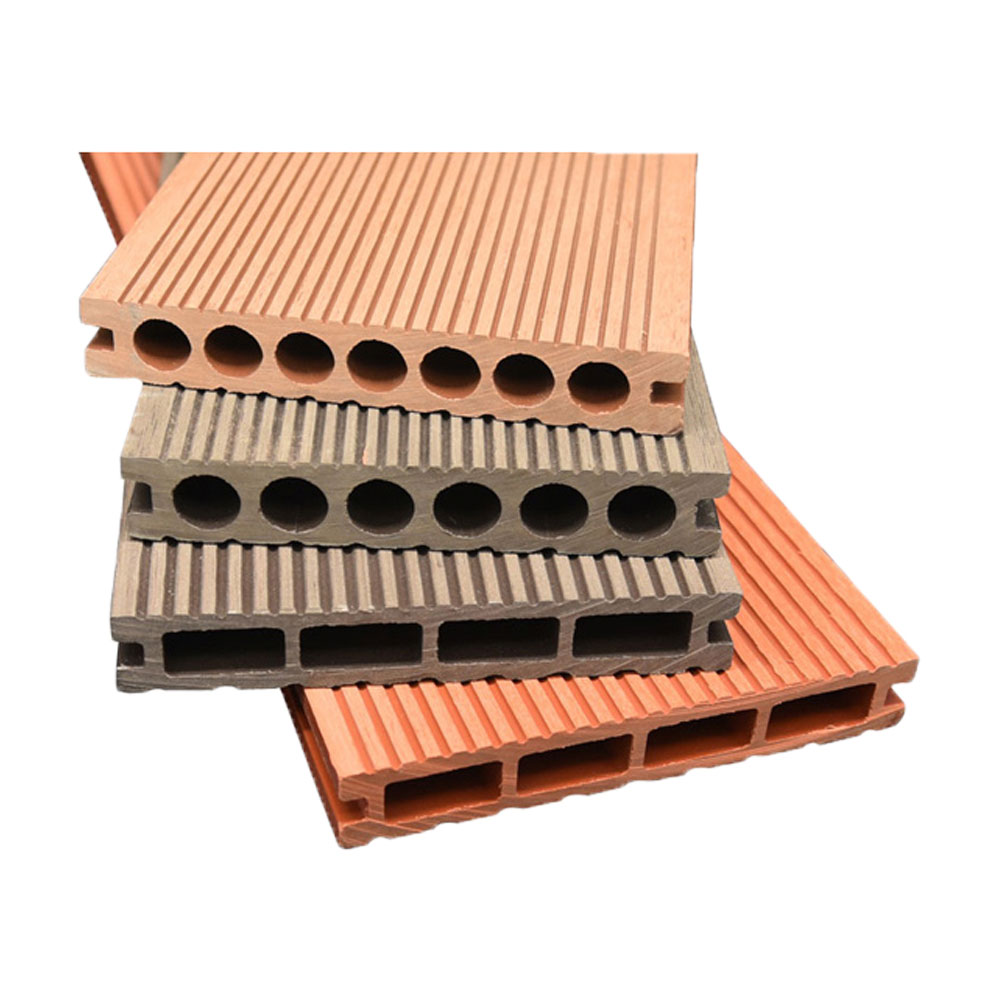

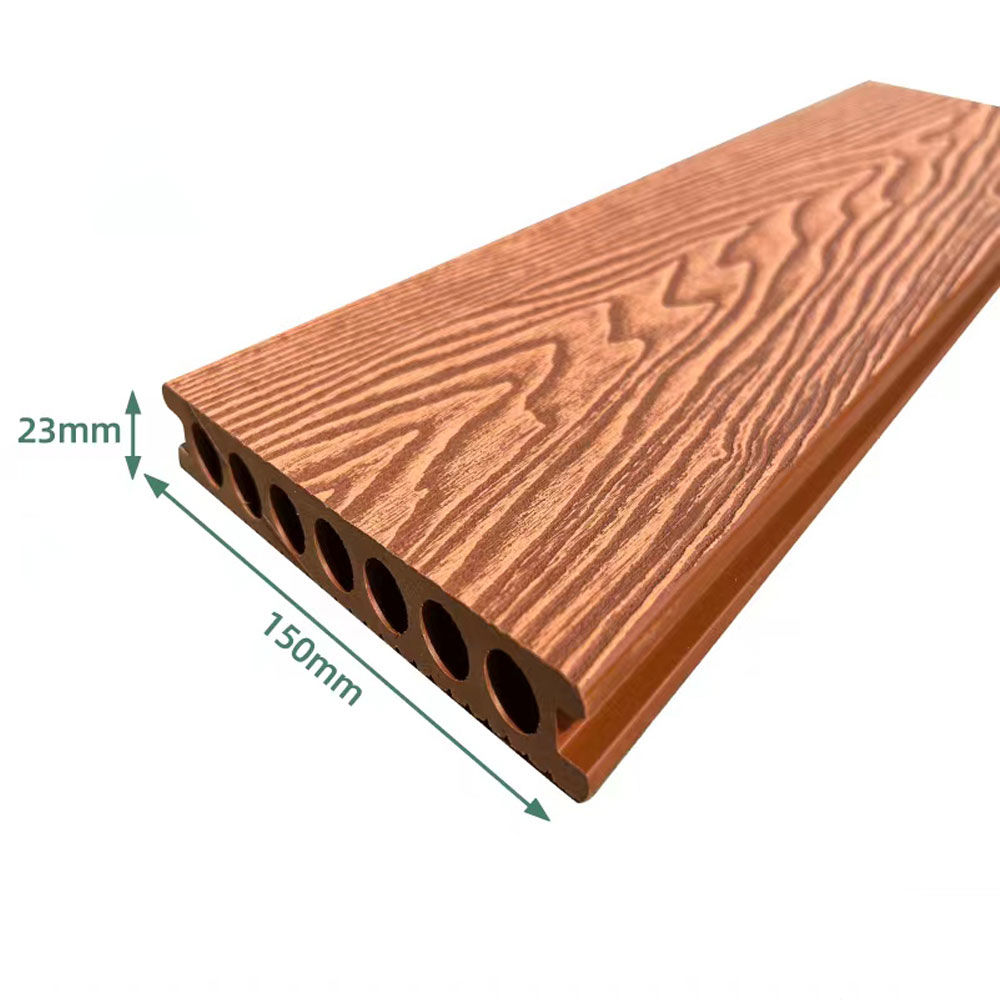

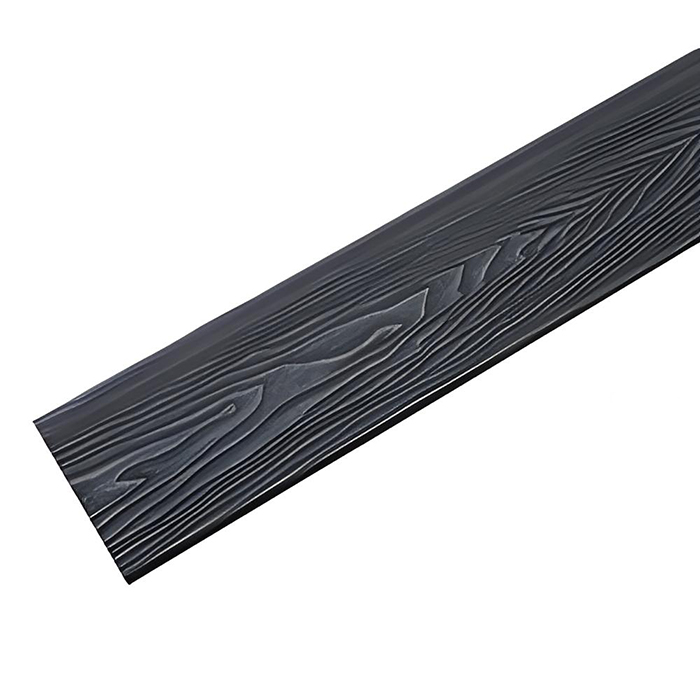

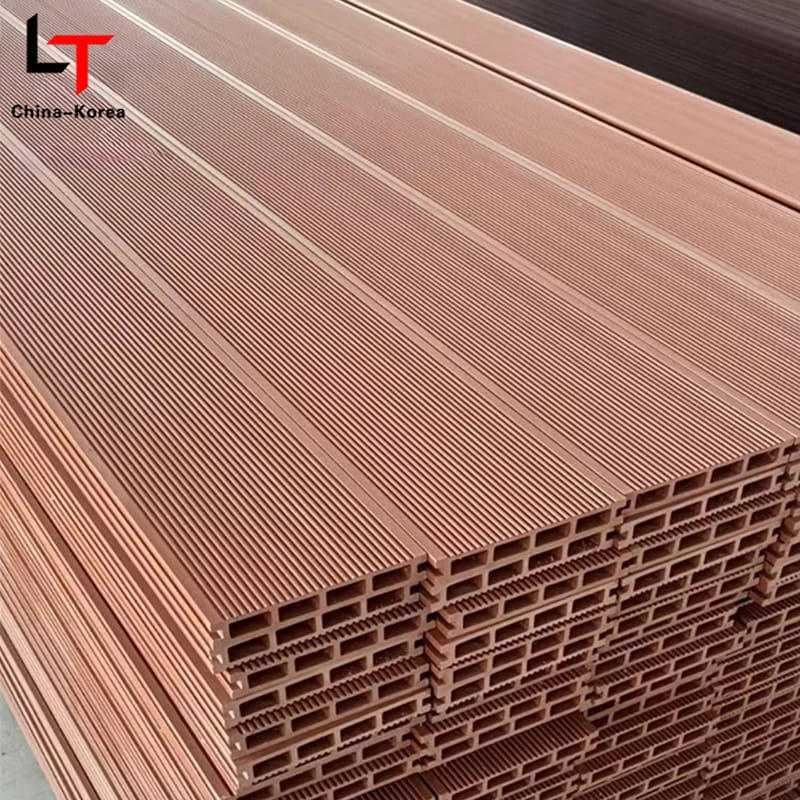

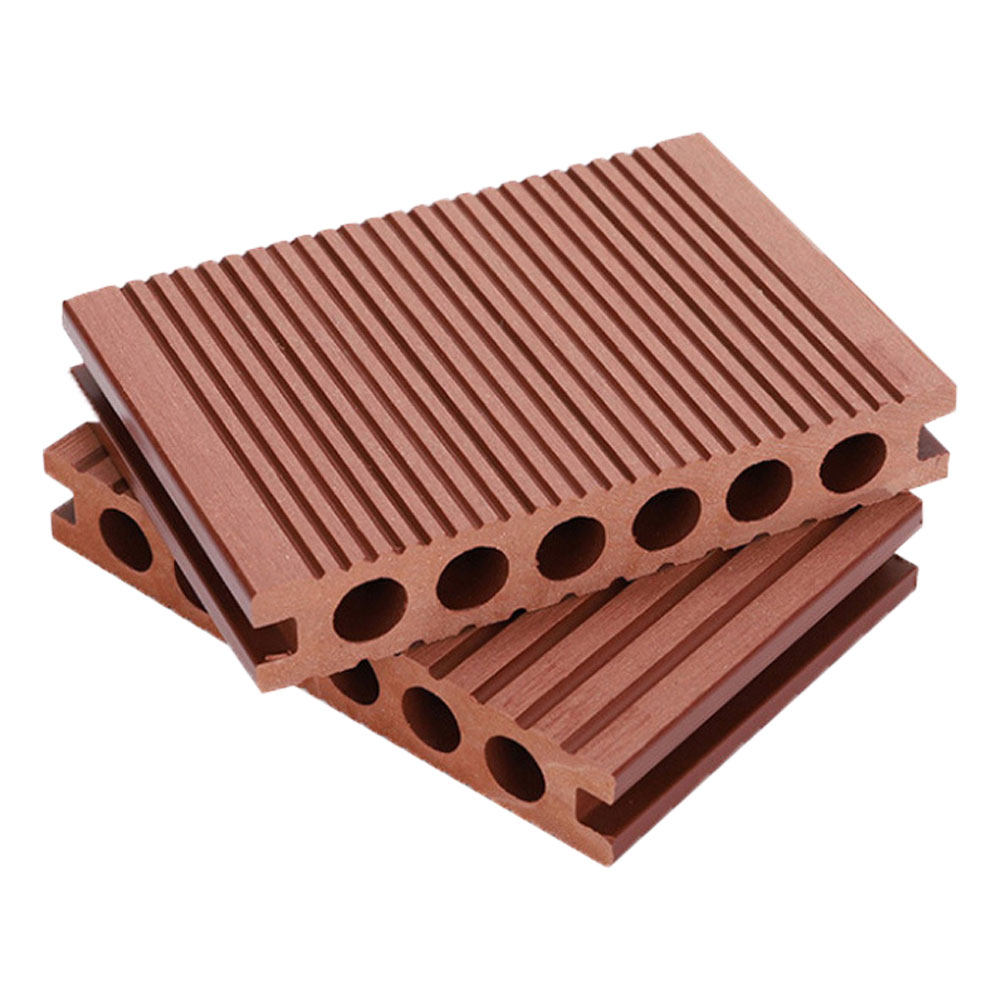

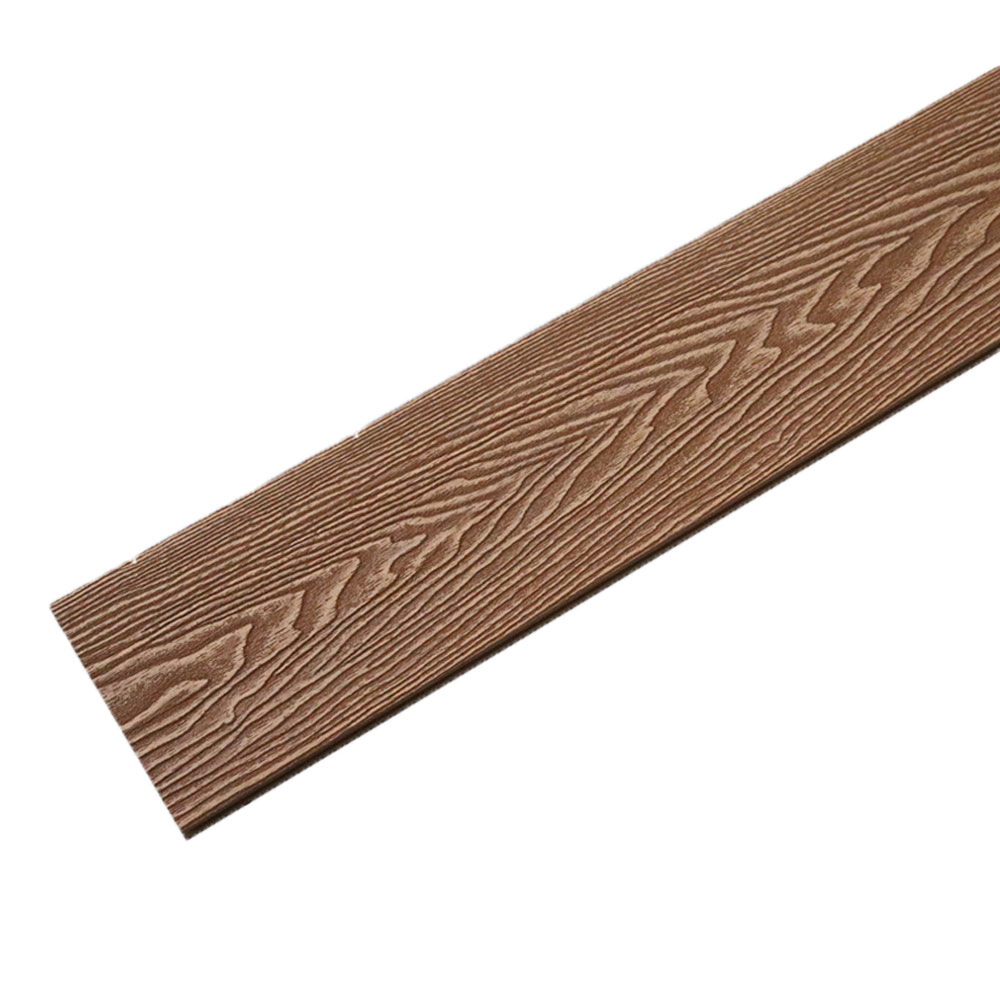

Interlock Wpc Outdoor Decking 3D Embossing Wood Grain Composite Decking Board Wood Plastic Texture Flooring

​​Material​​ Wood fiber/bamboo fiber + PVC resin + flame retardant/calcium carbonate powder (optional) + surface coating (UV/wood grain transfer)

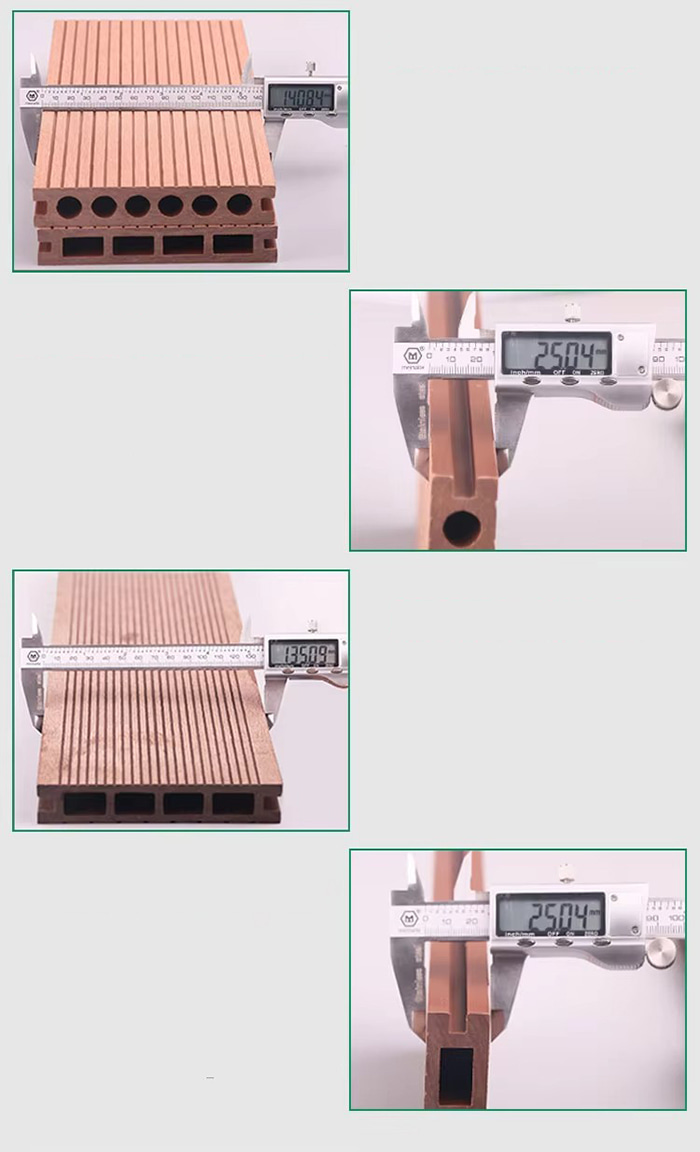

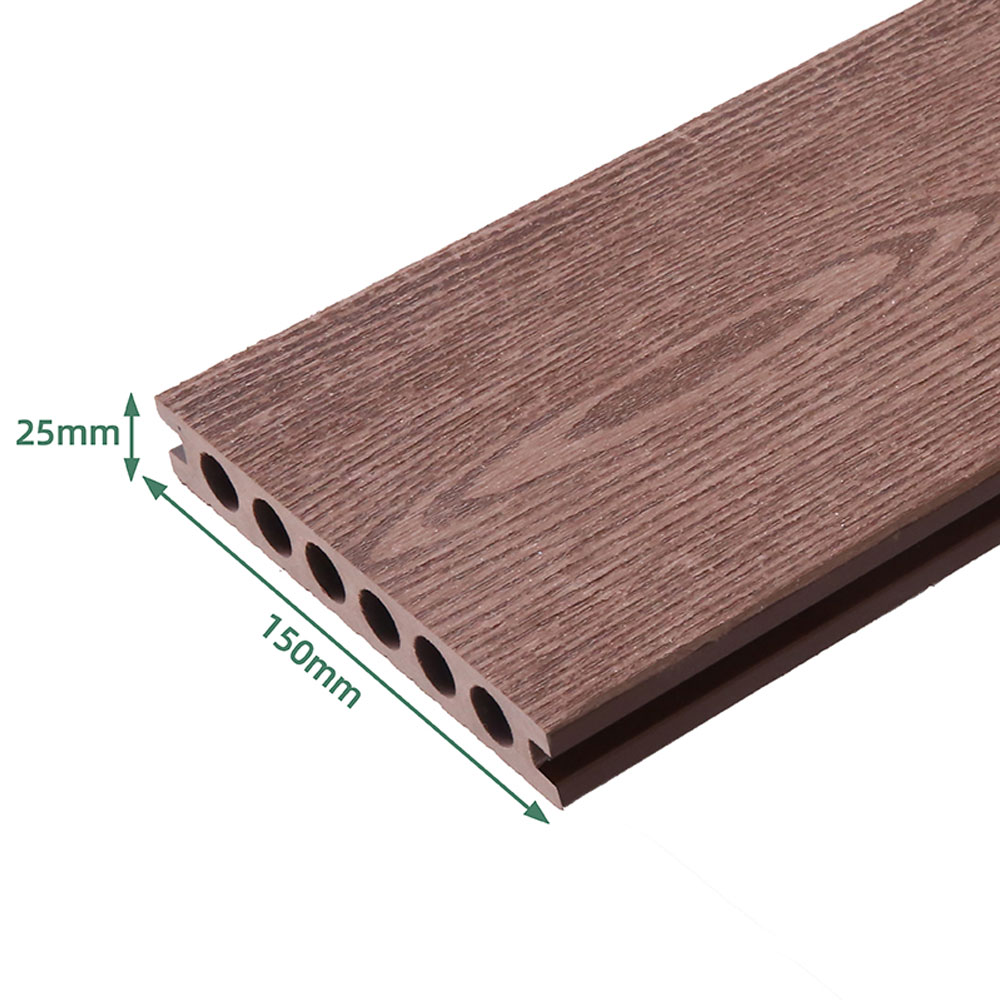

​​Specification​​ Standard size: 1220×180×8-12mm (thickness optional 5-20mm)​​

density​​ 1.2-1.8g/cm³ (substrate layer)​​Fire rating​​B1 flame retardant (GB 8624 standard), some models reach A2 level (EN 13501-1)​​

Formaldehyde emission​​ ≤0.02mg/m³ (EN 717-1 standard, ENF environmental protection level)​​

Wear layer thickness​​ 0.3-0.7mm (transparent wear-resistant layer)​​

Compressive strength​​ ≥80MPa (GB/T 1043.1 standard)​​

Water absorption​​ ≤0.5% (GB/T 17657 standard, 24-hour water immersion test)​​

Anti-slip level​​ R9-R10 (wet surface friction coefficient ≥ 0.6)

​​Temperature resistance​​ -40℃ to 60℃ (no deformation during long-term use)​​

Weight​​ About 3.5-8kg/m² (taking 8mm thickness as an example, which is 1/3 of solid wood flooring)

WPC floor (Wood Plastic Composite) is a new type of environmentally friendly floor made of wood fiber or bamboo fiber as the core raw material, compounded with PVC resin, flame retardant, etc. through high temperature and high pressure process. Its structure is divided into four layers: wear-resistant layer (UV coating), wood grain/stone grain decorative layer, fiber reinforced base material layer and silent layer. It has both the texture of real wood and the waterproof and moisture-proof performance of plastic, and is suitable for indoor and outdoor full-scene floor decoration.

Family Space

​​​​Kitchen/Bathroom​​ : Waterproof and moisture-proof (water absorption rate ≤0.5%), oil-resistant and easy to clean, and can resist water vapor erosion.​​

Floor heating environment​​ : Strong thermal stability (thermal conductivity 0.045W/m·K), no formaldehyde release, suitable for floor heating system.​​

Commercial Places

​​​​Shopping mall/hotel​​ : Anti-slip grade R10 (friction coefficient of slippery surface ≥0.6), antibacterial and mildew-proof (antibacterial rate ≥95%), in line with the hygiene standards of public places.​​Showroom/Office​​ The lock installation does not require glue, it is ready to use after installation, and supports quick renovation.​​

Public Facilities​​​​

Hospital/School​​ : Antibacterial rate ≥99% (nano silver ions added), chemical corrosion resistance (pH 1-14).​​

Subway station/Airport​​ : Fireproof grade B1 (flame spread time ≥ 30 minutes), strong impact resistance (load ≥ 1000kg/m²).​​

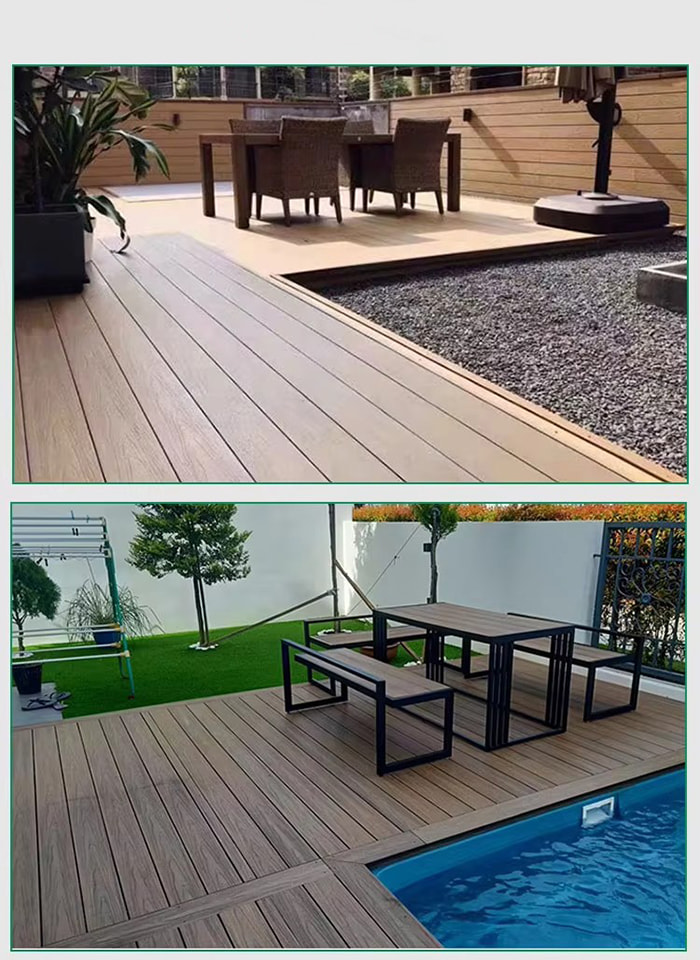

Outdoor scene​​​​

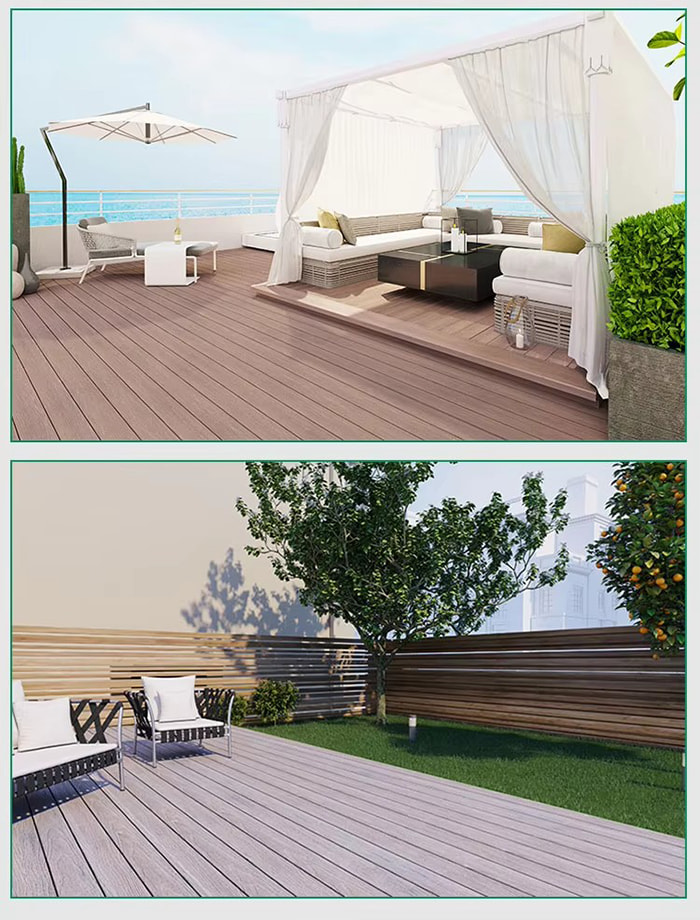

Garden/Terrace​​ : Strong weather resistance (anti-ultraviolet and anti-aging), adaptable to extreme climates (-40℃ to 60℃).​​

Pool/SPA Area​​ : Water and alkali resistant (acid and alkali immersion resistant), excellent anti-slip performance.



Environmental safety​​ Zero formaldehyde, no heavy metals (soluble heavy metals ≤ 0.01 mg/kg), meets ENF grade standards, and is 100% recyclable and degradable.​​

Excellent performance

​​​​Waterproof​​ No expansion after immersion for 72 hours, can be used in underwater environment (such as swimming pool) for a long time.​​

Wear resistance​​ : The surface wear-resistant layer reaches T level (≥8000 revolutions) and the service life exceeds 10 years (traffic flow ≥5000 times/day).​​

Fire resistance​​ : B1 grade flame retardant, self-extinguishing when encountering fire, no smoke or toxic gas release.​​

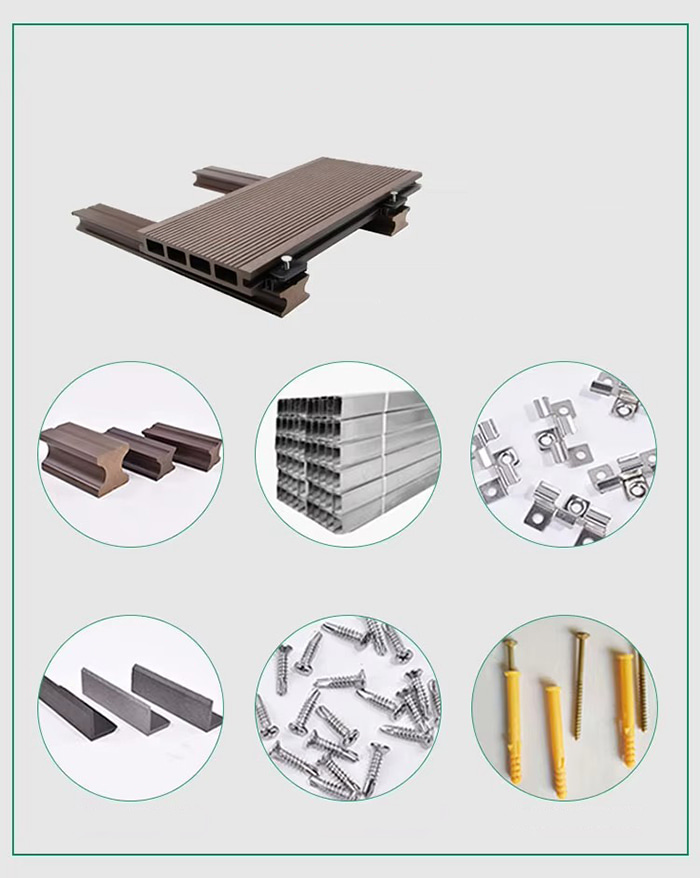

Easy installation​​ Lock-type installation (tolerance ≤ 0.1mm), no keel required, construction period shortened by 60%, suitable for special-shaped spaces (such as curved walls).​​

Comfort​​ Thickness 8-12mm, feel close to solid wood, elastic modulus ≥ 2000MPa, noise reduction of 32dB in the silent layer.

Thermal conductivity 0.045W/m·K, suitable for floor heating system, energy saving efficiency increased by 20%.

​​Economical and practical​​ The cost is only 1/3 of that of solid wood flooring, and the maintenance cost is low (no waxing, pollution-resistant).

It can be disassembled and reassembled twice, and the old floor does not need to replace the base material.



​Raw material preparation

​​​​Substrate Mixing​​ Wood fiber (50-60%) + PVC resin (30-40%) + carbon fiber anti-corrosion layer (5-10%), adding aluminum hydroxide flame retardant to improve to A2 grade.​​

Surface coating​​ : UV curing coating (film thickness ≥ 20μm), wear resistance increased by 30%.​​

Molding process​​​​

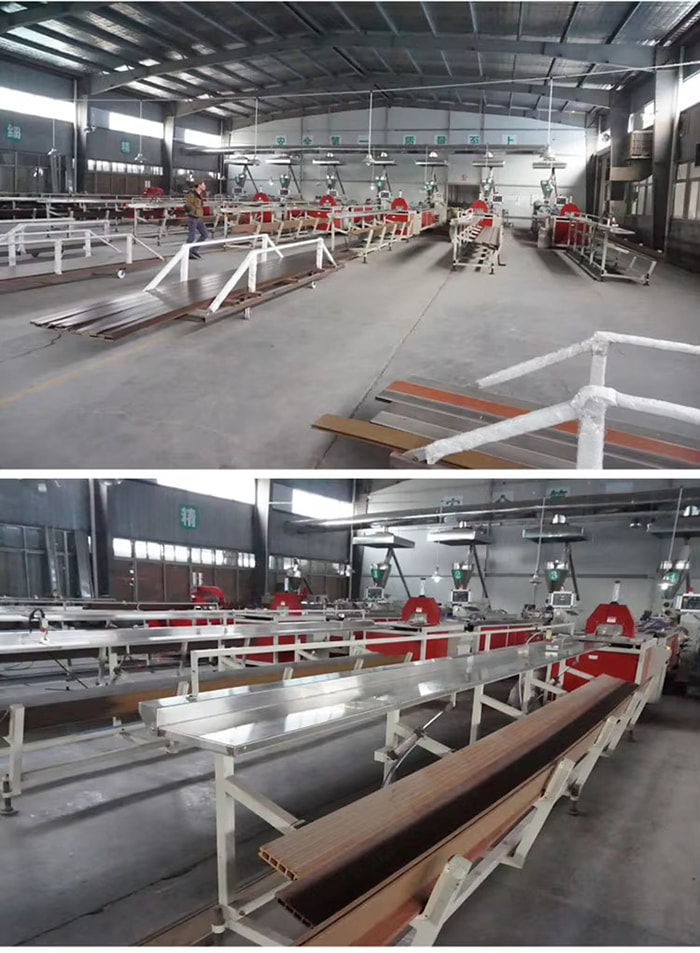

Extrusion​​ : Twin-screw extruder (temperature 170-195℃) continuously extrudes the base material, and four-roll calendering is used to determine the thickness (error ±0.2mm).

​​Composite process​​ : The decorative layer (printing accuracy 1200dpi) and the wear-resistant layer (0.3mm) are hot-pressed together, and the laminating pressure is ≥5MPa.

​​Post-processing technology

​​​​Hydrophobic hole design​​ ：The internal through holes of the substrate are connected to the hydrophobic holes to drain the accumulated water and prevent internal corrosion.​​

Antique treatment​​ : Pickling, burning, litchi surface and other processes to simulate the weathering effect of natural stone.

​​Quality Control​​​​

Physical Testing​​：Abrasion resistance revolutions ≥8000 revolutions (GB/T 18102), noise test ≤32dB (EN 14041).

​​Environmental certification​​ : Passed GREENGUARD Gold, FSC certification, CE certification (EU).​​

Special Process​​​​

Anti-corrosion treatment​​ : Carbon fiber anti-corrosion layer (carbon fiber filament braiding) enhances corrosion resistance and extends service life.​​

Enhanced elasticity​​: The seafoam cushion absorbs water and expands to improve the elasticity of the foot, and restores its hardness after drying.

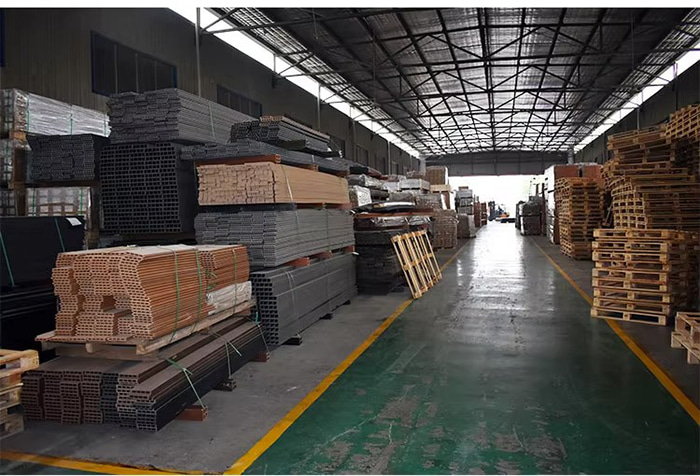

Haining Longtime Industry Co., Ltd is China Wholesale Interlock Wpc Outdoor Decking 3D Embossing Wood Grain Composite Decking Board Wood Plastic Texture Flooring Suppliers and Interlock Wpc Outdoor Decking 3D Embossing Wood Grain Composite Decking Board Wood Plastic Texture Flooring Company, established in 2005, our factory started with producing PVC Ceiling and Wall Panels, and has grown to be a professional China PVC ceiling panels manufacturer and a wholesale PVC panels factory, committed to providing our customers with high-quality products and services. After 20 years of development, we now own 5 large factories: Haining Halong PVC Ceiling Factory, Haining Longtime Film Factory, Guangxi PVC Wall Panel Factory, Indonesia PVC Wall Panel Factory, and Vietnam PVC Wall Panel Factory. Our main products include: PVC Ceiling Panels, PVC Wall Panels, WPC Wall Panels, Hot Stamping Foil, PVC Lamination Film, SPC Flooring, WPC Decking, and other related products. Our annual sales can reach up to 35 million USD. We offer Interlock Wpc Outdoor Decking 3D Embossing Wood Grain Composite Decking Board Wood Plastic Texture Flooring for sale.
